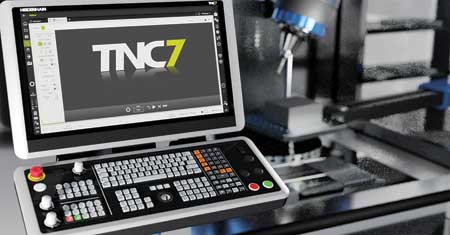

At IMTS 2024, HEIDENHAIN will be continuing its shop floor-centered manufacturing by showcasing the TNC7 in North America (booth 339440). This CNC control supports users from initial design to final machining, from one-off jobs to serial production, and from simple slots to complex contours. Its control platform lets machine manufacturers adapt the user interface to their machines and offers dynamic development potential for even greater functionality.
"The TNC7 delivers an outstanding user experience, bringing new possibilities to users on the shop floor," said a company spokesperson. "Along with easy and intuitive operation, users enjoy support from a virtual simulation of the machined part and work envelope. It will be the basis of future control generations from HEIDENHAIN. Beyond its unmistakable look-and-feel, the control features high-quality hardware components including a 24-inch full HD touchscreen monitor and an advanced, individually adaptable user interface. Its entire operating concept was redesigned from the ground up."
The interface of the TNC7 was designed to help users achieve the best possible result with maximum speed and convenience. Different machining tasks call for individualized work environments, which is why users can adapt their screen content through personal favorites, their own home menu for a faster start. Due to its fast-operating speed, the control reacts immediately to data input.
The TNC7 enhances familiar Klartext programming with smart functions and newly developed graphical programming. Users are able to draw contours directly on the touchscreen and convert them into dialog-guided TNC Klartext programming code. Cycles and older contour programs can still be used, including already existing NC programs. A diverse package of functions, intelligent probing cycles and graphical guidance for determining the position of clamping devices completes the next level of smart programming.
For more information contact:
HEIDENHAIN Corporation
333 E State Parkway
Schaumburg, IL 60173-5337
847-490-1191
www.heidenhain.us
IMTS South Building, Level 3
Booth 339440
IMTS East Building, Level 2
Student Summit Booth 121003
