"There are many ways of automating workpiece holders. They are meant to boost the economic efficiency of workpiece production," said an EROWA spokesperson. "However, this goal can only be achieved if the entire manufacturing process runs reliably and without any issues. EROWA's VPC (Vise Power Clamp) tooling system was developed for precisely this purpose. In combination with the suitable EROWA loading station, it guarantees an automation process that is reliable and trouble-free. In addition, the universal applications of the tooling system allow for the highest degree of flexibility in workpiece production."
The key components consist of the two VPC chuck sizes (52 mm type and 96 mm type) and the matching VPC chucking spigots. All the workpiece holders that have been prepared with the common 52 mm or 96 mm pitches can be clamped in the matching VPC chucks.

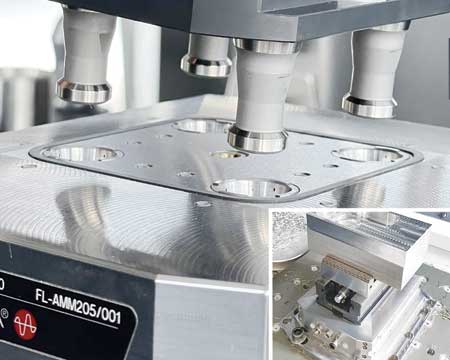

Preparation is simple: screw the VPC chucking spigots into the workpiece holder, the fixture or the workpiece itself and tighten it. The clamping technology of the VPC chuck includes an integrated Z-support, status monitoring and a circumferential seal.
The VPC chucks can be attached to the machine table directly or through a base plate. Workpiece holders and workpieces are clamped in the chuck with 15 kN of force. Workpieces can be exchanged within seconds with a repeatability of <0.003 mm.
"The VPC chucking spigots are made of high-quality hardened steel and have a long lifecycle," said the spokesperson. "The ground functional surfaces ensure optimal run-in behavior into the VPC chuck. This guarantees reliable clamping and trouble-free automation."
With the help of adapter pallets, the VPC tooling system can easily be combined with other EROWA tooling systems, such as UPC or MTS. In this way, flexibility in workpiece production can be maximized.
For more information contact:
EROWA Technology, Inc
North American Headquarters
2535 S. Clearbrook Drive
Arlington Heights, IL 60005
847-290-0295
info@erowa.com
www.erowa.com
IMTS South Building, Level 3
Booth 339080
