Laser Measurement System for Easy Machine Installations



"Whether machining centers, traveling column machines, portal machines, lathes or a variety of other smaller machines with 3 to 6 axes, the machine geometry is essential not only for the quality of the product, but also for the durability and reliability of the machines. CENTRIC International and Status Pro offer the new ProLine Laser Measurement System to meet the requirements of digitalization," said a spokesperson. "The ProLine is the modern, wireless alternative to dial gauges and granite rulers."

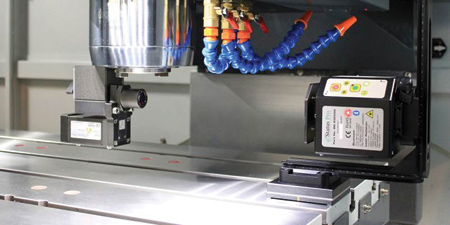

The ProLine 300 consists of a laser and various laser receivers. Laser and receiver can be combined as desired; this makes it possible to carry out straightness, flatness, perpendicularity and parallelism measurements as well as leveling of entire machines.

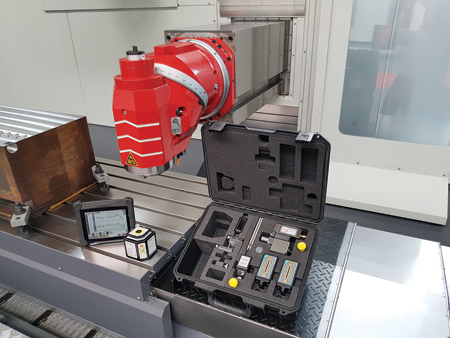

"Conventional measuring equipment such as the granite angle is usually too small, too heavy and still has to be transported by truck. The ProLine 300 comes in a handy case, is easily scalable in length and offers an accuracy of up to 1 µm/m (approx. 0.04 mils/inch)," said the spokesperson.

The software and a display unit, which is robust because it is designed for industrial environments, enables the operator to perform extensive measurement point recording and documentation. All important information of the measurement is automatically saved and a report in PDF and CSV format is generated.

All components are connected via Bluetooth. This allows the user to control the whole system via software and set-up is possible within a few minutes. A live screen offers the user the possibility to correct errors directly.

For more information contact:

CENTRIC International

875 N. Michigan Ave.

Suite 3600

Chicago, IL 60611

statuspro@centric-intl.com

sales@centric-intl.com

www.centric-intl.com

www.statuspro.com/us
