High-Performance Drill and Expanded Jet-Through Hydraulic Chuck Line

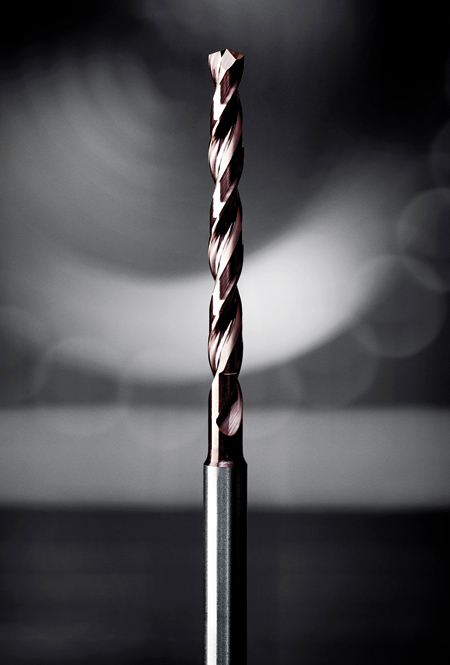

Nirox high-performance drill from Sphinx

BIG KAISER has expanded its jet-through hydraulic chuck line to include the BCV interface and additional inch sizes.

BIG KAISER Precision Tooling has introduced the Nirox high-performance drill from Sphinx, the newest addition to its cutting tool lineup. Available in diameters from 0.30 mm to 3.00 mm, the Nirox was developed for use at low cutting speeds in unstable environments. The Nirox geometry has a degressive helix angle equal to 30° at the point and is designed for accurate and precise hole location up to 9xD.

A modern TiAlSiN based coating allows for enhanced chip and coolant evacuation in difficult to machine and adhesive materials, such as titanium, Inconel, stainless steel, hardened steel and CoCr alloys.

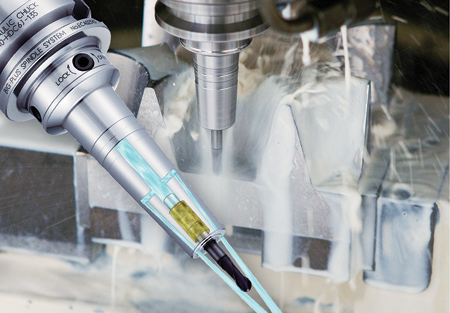

Expanded Jet-through Hydraulic Chuck Line

BIG KAISER has expanded its jet-through hydraulic chuck line to include the BCV interface and additional inch sizes.

The HDC jet-through type holders are suitable for high-precision 5-axis machining with maximum RPM of 35,000 and clamping range of 1/4" to 1/2" and fit nearly any application in the automotive, aerospace, medical, and die and mold industries.

An exclusive thread feature allows for convertible coolant delivery between jet-through coolant and center-through coolant. Jet-through hydraulic chucks are suitable toolholders for finishing applications that would benefit from improved coolant delivery. The coolant flows through the end of the toolholder and is angled to direct coolant to the cutting tool tip, improving surface finish and tool life.

"BIG KAISER HDC toolholders are simple to use: only one hex key wrench is needed to clamp or loosen the cutting tool, making tool changes fast and easy without special equipment. Every HDC toolholder is guaranteed to .00012 in. TIR at 5xD," said a company spokesperson.

For more information contact:

BIG KAISER Precision Tooling Inc.

2600 Huntington Blvd.

Hoffman Estates, IL 60192

888-TOOL-PRO / 224-770-2999
