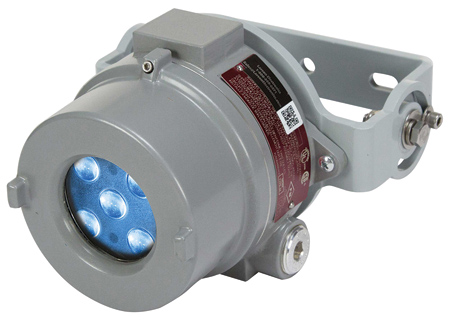

25 Watt LED Explosion Proof Forklift Light



Larson Electronics has announced the release of a 25 watt explosion proof LED forklift warning light equipped with an adjustable surface mount bracket.

The EXHL-TRN-LE4-FKWL-BLUE-1224 blue explosion proof forklift light produces 2,250 lumens of high-intensity light for illuminating within hazardous areas and potentially explosive work environments. This fixture is designed to expand safety measures in hazardous work areas by providing early notifications for nearby workers and pedestrians. Five, 5-watt blue LEDs producing 450 lumens each are combined with high output parabolic reflectors to produce a narrow 5° spread spot beam, providing a high intensity center beam that is visible at night and during the day.

"This unit is Class 1 Division 1 rated, NEMA Type 3, 4, 4X, 7 (B, C, D) and 9 (E, F, G) rated, and designed to withstand the rigors of demanding environmental and operating conditions," said a company spokesperson. "It can operate in temperatures of -40 °C to 60 °C, is waterproof to 3 m and resists ingress of dust, dirt and humidity." This explosion proof light fixture is offered in a choice of spot or flood beam configuration and operates on 12 or 24 volts DC.

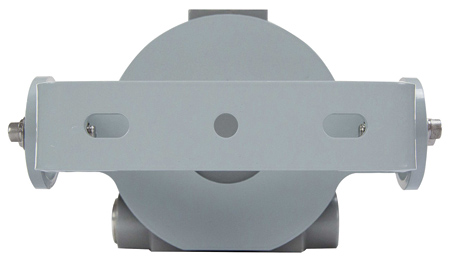

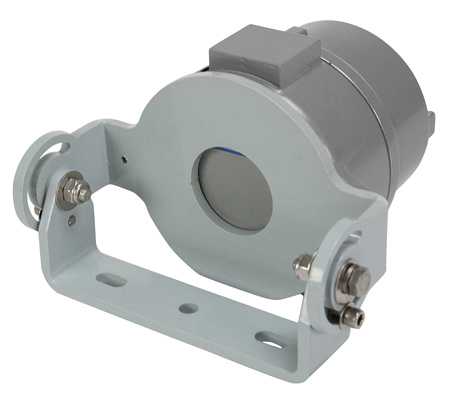

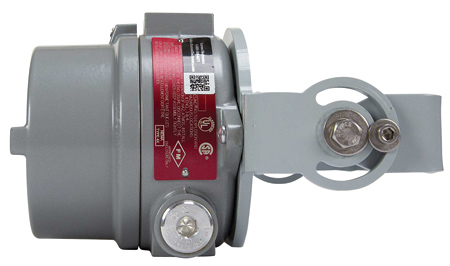

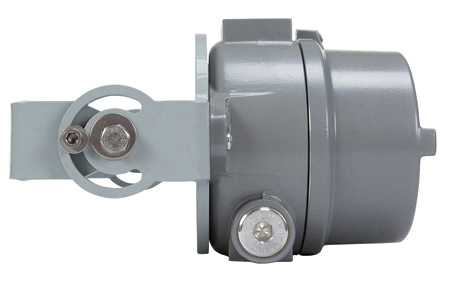

This explosion proof light features an adjustable surface mount bracket. The included adjustable flat surface bracket has two set screws on the bracket, allowing operations to loosen the mounting bracket, adjust the light's tilt orientation and re-tighten to hold the luminaire in position. A single through-hole mounting bolt allows operators to adjust the rotation of the fixture by loosening one bolt. Terminal strips inside the fixture allow the operator to make electrical connections. The wiring is fed through rigid pipe to the 3/4" NPT hubs on either side of the fixture and ties in to the fixture's terminal strips, completing the electrical connection.

"Larson's new mini explosion proof forklift warning light features a compact, yet powerful design allowing it to fit in the most minuscule spaces," said Rob Bresnahan, CEO of Larson Electronics. "This low profile, light weight LED light fixture is just what consumers are demanding and it will not disappoint with its performance."

For more information contact:

Larson Electronics

9419 E. U.S. Hwy 175

Kemp, TX 75143

800-369-6671 / 214-616-6180

sales@larsonelectronics.com

www.larsonelectronics.com
