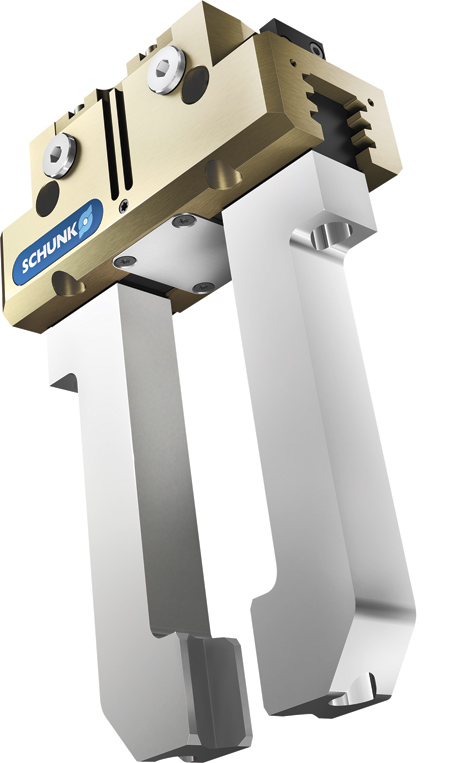

Pneumatically Powered Universal Gripper



SCHUNK has introduced several improvements on the original PGN-Plus and has announced the newest generation gripper, PGN-Plus-P. Enlarged supporting dimensions between the six load-bearing shoulders of the multi-tooth guidance allow higher moment capacity that can accommodate longer fingers and greater loads.

Permanent lubrication is provided through continuous lubrication pockets in the guidance. "For short strokes in particular, the principle of minimum quantity lubrication ensures quick and even distribution of the lubricant making the gripper nearly maintenance-free and considerably extends its service life," said a company spokesperson.

The PGN-plus-P also has an enlarged drive piston area that increases grip force so that higher workpiece weights can be handled. In addition to the larger piston, the wedge drive mechanism has been redesigned for lower friction and greater surface area, which transmits more energy to the jaws creating even more grip force than previous generations.

The PGN-plus-P is suited for use in areas with high temperatures, contamination and aggressive media, as well as for cleanrooms. On request, the module is available with spring safety, mechanical gripping force maintenance, compensation units for compensating angular misalignment, dust-proof versions or as special high-precision versions. "PGN-Plus-P continues to offer the most complete list of options in the industry including sensors, tool changers, finger blanks and dust protection," said the spokesperson. The PGN-Plus-P is available in sizes 50 to 125.

For more information contact:

SCHUNK Inc.

211 Kitty Hawk Drive

Morrisville, NC 27560

919-572-2705

info@us.schunk.com

www.schunk.com
