Two-Axes Rotary Assembly with Direct-Drive Rotary Stages
January 1, 2021

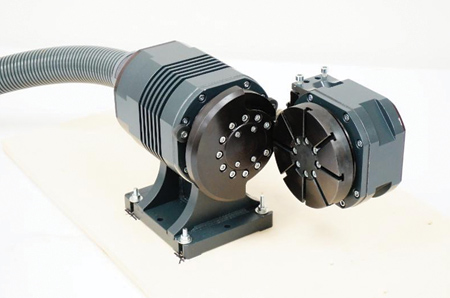

Tilt-yaw 2D rotary system
IntelLiDrives' integrated 2-axis rotary assembly provides high-speed machining capabilities for complex 3D part geometries. The precision-aligned system allows accurate positioning on a hemispherical surface. Multiple frame sizes provide a wide range of load carrying capabilities.
Two-axis rotary combinations feature direct-drive DDR rotary stages. "Direct-drive motors exhibit significantly higher throughput and maintenance-free operation when compared to gear- and screw-driven technology. With peak rotation speeds of up to 1,000 RPM, the assembly is capable of supporting high-speed machining processes," said a company spokesperson.
A high-resolution encoder enables the axes to run at slow speeds while maintaining enhanced velocity regulation and positioning accuracy.
To see how the tilt-yaw 2D rotary system works go to youtube.com/watch?v=kwzftb2YxFI&t=20s.
IntelLiDrives manufactures a large selection of motorized rotary actuators with worm-gear and belt mechanisms. These rotary actuators are available with many different size apertures, table diameters, mounting options and motor choices to provide the right solution for industrial automation applications. IntelLiDrives rotary stages are used in industrial robots, fiberoptics and photonics, vision systems, machine tools, assembly, semiconductor equipment, medical component laser machining, electronic manufacturing and other high-performance motion control applications.
For more information contact:
Intellidrives, Inc.
8510 Bustleton Ave.
Philadelphia, PA 19152
215-728-6804
sales@intellidrives.com
www.intellidrives.com
