Two Turret Solution with Increased Spindle Distance

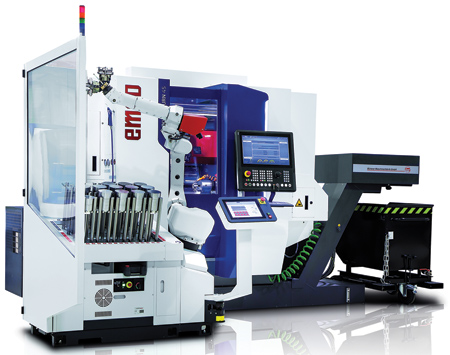

HT 45 G3 with Turn/Mill-Assist

Turn/Mill-Assist by EMCO is designed to increase profits and reduce the working hours by up to 70%.

Due to the beginner-friendly control unit, the operator can quickly move into the implementation phase, increasing process efficiency.

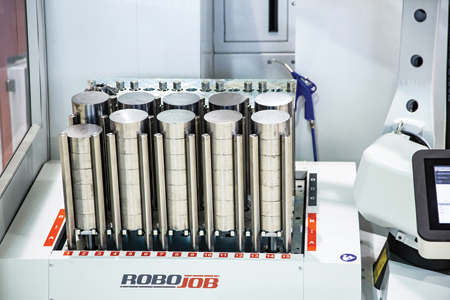

This model is equipped with two servo-controlled stacking tables that are capable of stacking larger quantities of both blanks and machined parts.

As the entry-level to the Hyperturn series, the HYPERTURN 45 G3 offers increased spindle distance of 760 mm for collision-free processing with two turrets. The expanded working space offers sufficient room for the integration of BMT turrets in 12x or 16x versions. It features a precision interface for fast tool changeover and direct drive for high power milling of complex workpieces. The water-cooled direct drive has 8 kW of power, drills and mills at up to 12,000 RPM and offers 20 Nm of torque. The stable BMT interface provides tools with long service life. EMCONNECT, the new assistant for control and production processes, is included in the machine's standard equipment. EMCONNECT is a digital process assistant for the comprehensive integration of customer- and system-specific applications for controlling the machine and the production flow. "Because the operating sequences focus on the user and their requirements, it is possible to create more efficient work processes without losing sight of the machines' outstanding reliability in all operating modes," said a company spokesperson.

EMCO offers automation solutions, Turn/Mill-Assist, a standardized automation solution and currently the most compact solution for loading and unloading EMCO turning and milling machines.

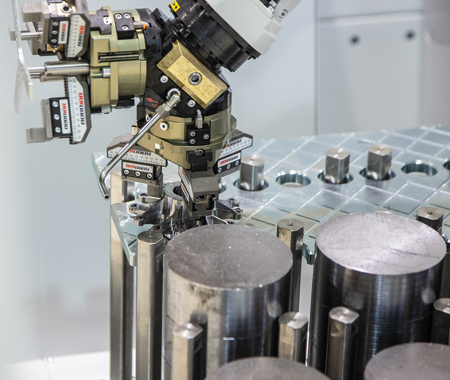

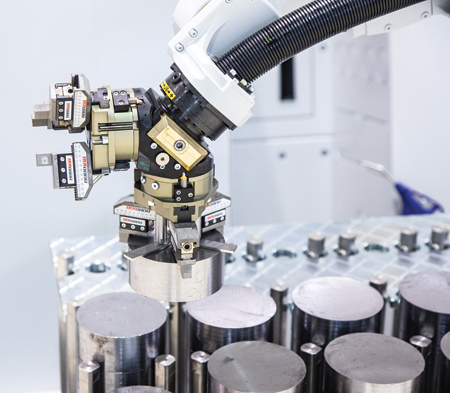

EMCO's Turn/Mill-Assist is a compact and complete solution for loading and unloading EMCO turning and milling machines. "Due to the beginner-friendly control, users can get to work without delay, which results in significantly higher efficiency, profitability and flexibility," said the spokesperson. "Customers will benefit from longer machine service life and have a flexible solution with a wide range of applications regarding weight and workpiece type at their disposal."

With the Turn/Mill-Assist series, EMCO offers different standard automation solutions, each of which comes with specific features. Each model-Turn/Mill-Assist Essential and Turn/Mill-Assist 200/270-offers a wide range of robot payloads as well as options and modular expansions.

EMCO's Turn/Mill series includes a wide range of standard products, standard options and modular expansions. With these components, operators can compile their own tailor-made automation solution. Additional features such as turning units, devices for placing the finished parts onto Euro-pallets or an axis extension for the handling of shaft-type components are available. It is also possible to operate the solution together with a bar loader.

The machines feature a new look that incorporates user-friendliness and a clear arrangement of the machine's main interaction areas. The operating panel features aluminum surfaces, ergonomically adjustable controls and an intuitive user interface.

For more information contact:

EMCO Corporation

46850 Magellan Drive, Unit 160

Novi, MI 48377-2448

248-313-2700

info@emco-usa.com

www.emco-world.com
