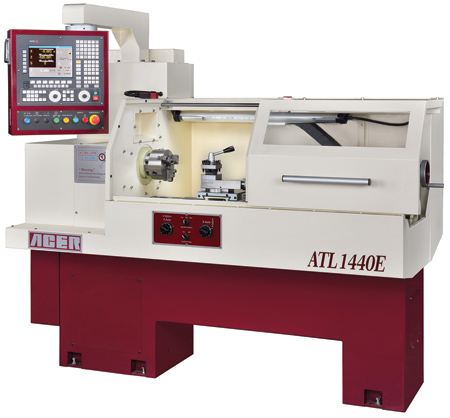

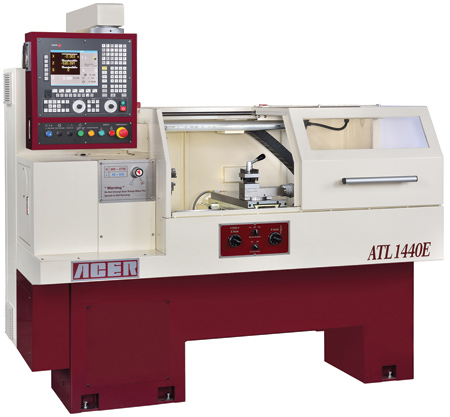

Teach-Mode Lathe

The ACER ATL-1440E is a combination of a manual lathe, a lathe with teach modes and 2-axis CNC capability. "This combination, along with constant surface speed, reduces set-up times, lengthens tool life and reduces cycle times, which, in turn, increases productivity," said a company spokesperson. "Operations such as turning threads, tapers, chamfers and contours can be performed on the ATL faster and more efficiently."

The Fagor 8055i/A-TC control is capable of conversational and G Code programing. Additionally, the control has graphical conversational help modes with a fill-in-the-blank format that is displayed on a clear and concise 10-1/2" monitor.

The ATL-1440E has a 14" swing over bed and 40" distance between centers, integrated with a 5 HP motor, 1-9/16" (40 mm) spindle bore, dual electronic handwheels and features constant surface speed. The machine includes a semi-enclosed splash guard with a sliding door, electromagnetic brake and automatic lubrication. The lathe is constructed with a Meehanite honeycomb ribbed casting bed for enhanced rigidity and dampening capability for high accuracy during rough turning and improved surface finish during fine turning.

For more information contact:

Acer Springwood Industrial, Inc.

2320 E Valencia Dr.

Fullerton, CA 92831

714-871-5558

info@aceronline.net

www.aceronline.net

Acer Klim Industrial, Inc.

244 N. Randolphville Road

Piscataway, NJ 08854

732-752-9700

acer_klim@yahoo.com
