5-Axis VMC with Tower Pallet

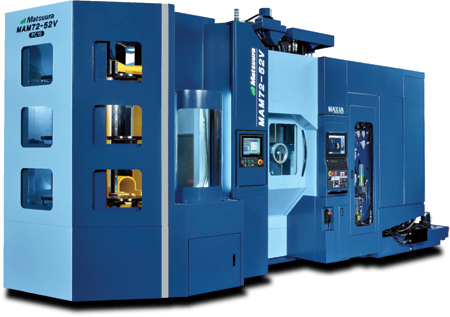

Matsuura Machinery USA offers the MAM72-52V, a high speed, large capacity 5-axis vertical machining center (VMC). The MAM72 series originated the concept of the tower pallet system.

"Achieving process integration, complex 5-axis machining and versatile functionality in all machining environments, variable-part/variable-volume production and reliable extended unmanned operation are standard features of the MAM72 series," said a company spokesperson. "The MAM72-52V is designed to handle a greater workpiece size than our existing models, offer faster response times to market and deliver even higher productivity to meet customers' business requirements for ever faster cycle times."

With the new MAM72-52V, the maximum workpiece size is D 520 mm x H 400 mm with a load capacity of 300 kg per pallet: a 23% increase in diameter, 50% increase in weight and 75% increase in envelope volume compared to existing models.

"The newly developed 4th/5th-axis table equipped with direct drive motors achieves a rapid traverse rate of 50 RPM and 100 RPM respectively, enabling both high speed and high accuracy in one machine," said the spokesperson. "Improved accessibility and good operability for set-up are ensured since the distance from the machine front (oil pan edge) to the pallet center is reduced to 564 mm and spindle center to 134 mm."

The MAM72-52V is an all-in-one machine that enables variable-part variable-volume production and extended unmanned operation. Features include a matrix tool magazine (130 tools/330 tool magazine base), tower pallet system (PC15) and chip removal system (spiral chip conveyor, lift-up chip conveyor) as standard.

The new machine is IoT ready, offering measurable remote and real-time monitoring of the machine status, condition and performance.

For more information contact:

Matsuura Machinery USA

325 Randolph Ave., Ste. 100

St. Paul, MN 55102

800-518-4584 / 651-289-9700
