Tilt-Spindle 5-Axis HMC in a Compact Footprint

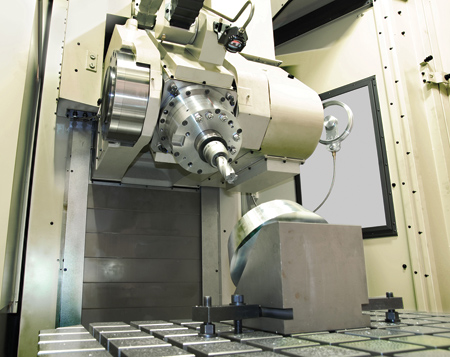

Mitsui Seiki's HU100-TS 100 tilt-spindle 5-axis horizontal machining center (HMC) is designed to provide high rigidity and accuracy when machining tough materials such as titanium and Inconel that are common in aerospace, power generation and other high-value applications. It is engineered to machine large, hard-metal workpieces that are better suited for tilt-spindle processing than trunnion table operations. The machine's fixed table and tilting head arrangement facilitates production of heavier and larger parts and can permit use of shorter, more rigid tooling.

The horizontal table of the HU-100TS can accommodate workpieces up to 1,900 mm (76") long and 1,250 mm (50") in diameter and weighing up to 2,000 kg (4,400 lbs.). X-, Y- and Z-axis travels are 1,300 mm (52"), 1,500 mm (60") and 1,400 mm (56"), with B-axis rotation of 360° and A-axis rotation of -30° to +120°. The machine's compact 5,530 mm (221") x 8,431 mm (337") footprint is similar to that of its 4-axis equivalent.

The column width and length/height ratio of the HU100-TS are engineered to maximize stability in heavy machining. The machine's HSK-A100 taper spindle provides up to 150 kW (201 HP) power and 1,508 Nm (1,112 ft-lbs.) torque. A standard automatic tool changer has capacity for 60 tools (180 optional) up to 500 mm (20") in length. Maximum tool diameter is 125 mm (5"); tools stored without adjacent tools can be up to 216 mm (8.6") in diameter.

Scott Walker, Chairman of Mitsui Seiki USA, said, "For manufacturers machining tough alloys, the HU100-TS offers 5-axis, tilt-spindle flexibility and the automation potential of an HMC as well as the rigidity, accuracy and reliability of a heavy-duty design."

For more information contact:

Mitsui Seiki USA Inc.

563 Commerce Street

Franklin Lakes, NJ 07417

201-337-1300

info@mitsuiseiki.com

www.mitsuiseiki.com
