Large Capacity Boxway HMC

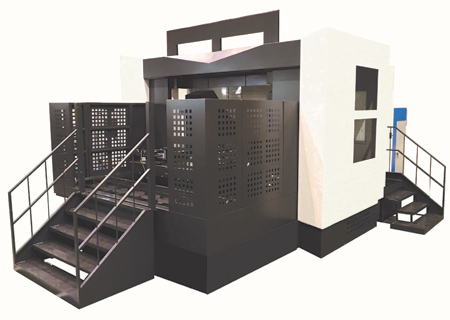

New from Niigata Machine Techno USA, Inc., the HN80E-5X 5-axis horizontal machining center (HMC) is the latest and largest addition to the builder's Heavy-Duty HN-5X Series.

The HN80E-5X features 49.2" of travel in the X-axis, 48.4" in Y and 47.2" in Z, and allows a maximum workpiece diameter of 49.2", height of 39.4" and weight of 3,300 lbs. Incorporating the solid cast iron X and Z base of Niigata's HN100D-II Heavy Duty Boxway HMC, the HN80E-5X offers enhanced rigidity, stability and accuracy, according to the company.

"The simultaneous 5-axis machining of the HN80E-5X results in improved cycle times and machined surfaces of complicated and 3D curved components," said a company spokesperson. "A quick and easy 5-axis compensation function ensures high accuracy over extended periods. Five-face machining means a reduced number of set-ups and simplified fixtures for reduced changeover time. For additional efficiency, the tool magazine is driven by a servo motor for fast and reliable indexing."

As with all HN-5X machines, the guide ways of the HN80E-5X consist of a combination of hardened and ground hand-scraped Turcite for stability and vibration damping, as well as a long life. The cross section of the rectangular guide ways is thick and wide for enhanced machine rigidity. Niigata's bifurcated bell-shaped column further contributes to rigidity and metalcutting efficiency.

Both ends of Niigata's heavy-duty 5-axis trunnion table are supported by the high load type roller BRG and a double-lead worm gear system for low frequency machining. For long-life dynamic machine accuracy, the HN80E-5X is equipped with an optical scale feedback system (on XYZ axes) and an inductive scale feedback system (on AB axes) as standard.

A high torque, heavy duty spindle complements the rigid machine frame. "The spindle headstock consists of mono-cast (single piece) castings for more powerful milling and greater accuracy than bolt-together type spindle heads," said the spokesperson.

The HN80E-5X comes equipped with the FANUC 30iM controller. A variety of 5-axis machining support software is available.

The HN80E-5X is designed for a range of industries requiring rigid, heavy duty and accurate performance, including aircraft, automobile, power generator, die & mold and semiconductor.

Niigata's range of models includes heavy-duty boxway, roller guide and hybrid (boxway and roller guide) machines with work envelopes reaching 1,600 mm. For versatile machining, Niigata also offers a line of facing centers and bar machines.

For more information contact:

Niigata Machine Techno USA, Inc.

1501 Landmeier Road

Elk Grove Village, IL 60007

630-283-5880

info@niigatausa.com

www.niigatausa.com
