Versatile 5-Axis DVF Series

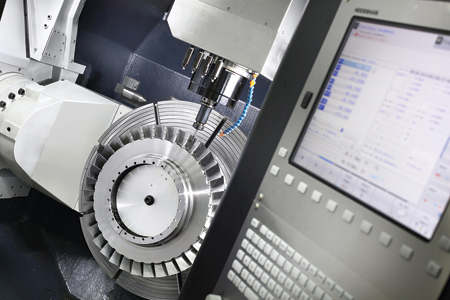

Doosan Machine Tools' DVF Series of compact 5-axis machining centers is built for a wide range of 5-sided and simultaneous 5-axis applications. "DVF machines are fully loaded to meet customer needs for cutting diverse and complex shapes in one set-up," said a company spokesperson. The FANUC 31i-B5 CNC controller makes full 5-axis simultaneous control (all axes feeding at once) possible, giving full contouring capabilities.

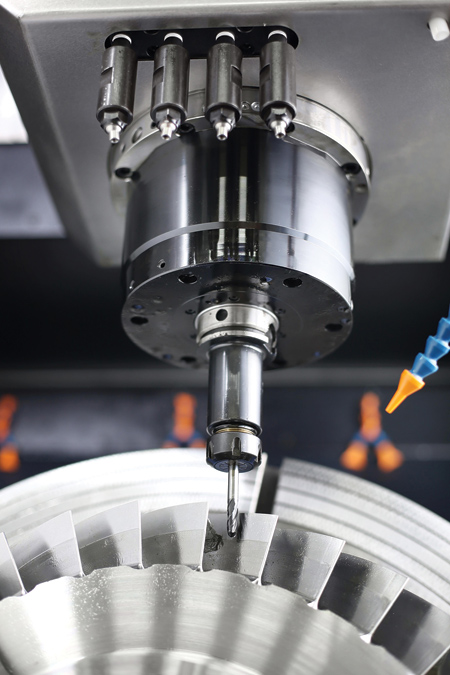

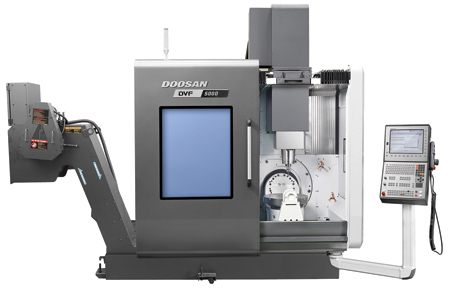

The DVF 5000 is equipped with a CAT40/BIG PLUS taper 18,000 RPM spindle, which facilitates high speed metal removal. The DVF 5000 features a 19.7" (500 mm) diameter B- over C-axis rotary table with a 24.8" (630 mm) option. The machine table is an integrated cantilever style full 5-axis table, which allows for the machining of parts from a variety of angles. Built-in table support holds a maximum weight of over 880 lbs. and minimizes any table deflection. The rotary table is designed for user friendliness and work efficiency, minimizing interference as the part is machined. Absolute glass scales on XYZ axes and angular optical encoders on B and C axes provide high resolution positioning and repeatability.

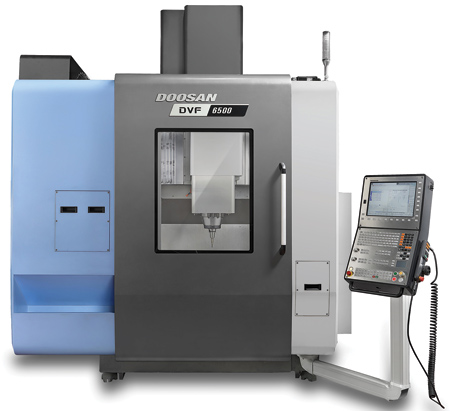

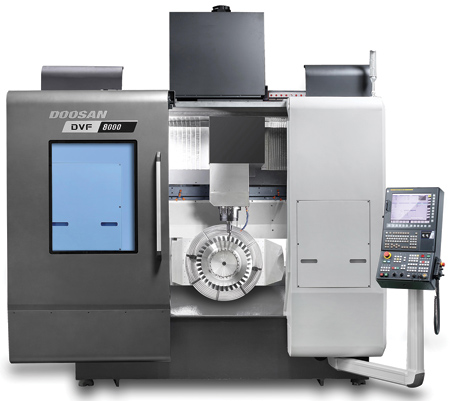

The DVF 6500 has the same spindle as the DVF 5000, but is designed with an integrated 25.6" (650 mm) diameter A- over C-axis rotary table. Even larger is the new DVF 8000 version, which comes with a 31.5" (800 mm) diameter rotary table. Also available is a special T model of the DVF 8000 that is capable of turning operations.

"Each DVF machine comes with a 60-tool servo-driven automatic tool changer that can be expanded up to 120 tools, giving the customer more tooling to tackle complex parts that have varying profiles," said the spokesperson. An oil cooled spindle controls heat to minimize thermal issues. The DVF Series also incorporates roller LM guideways for speed and added rigidity. Their compact footprint enables installation where floor space is limited or comes at a premium.

These vertical 5-axis machining centers can be customized with a diverse range of tailored options that provide automation and convenience features that make them suited for unmanned machining. One example is an optional/retrofittable Auto Workpiece Changer (AWC) for the DVF 5000, which gives lights-out machining capability. The AWC can be ordered in numerous pallet configurations: 4, 6, 8, 10, 12 and 24. The DVF 6500 and DVF 8000 models also come with their own automation options.

"The DVF Series is a perfect fit if you are trying to minimize set-ups, run production parts overnight or switch over to prototype parts quickly," said Jim Shiner, Director of Sales and Marketing at Doosan Machine Tools America.

For more information contact:

Doosan Machine Tools America

19A Chapin Road

Pine Brook, NJ 07058

973-618-2415

DMTA.Marketing@doosanmt.com

www.doosanmachinetools.com

Southwest

TX, LA

Ellison Technologies - Dallas

972-812-5500

cncinfo@ellisontechnologies.com

www.ellisontechnologies.com

Ellison Technologies - Houston

3403 N. Sam Houston Pkwy. West #100

Houston, TX 77086

713-365-9500

cncinfo@ellisontechnologies.com

www.ellisontechnologies.com

OK

Jeff DeLaughter

Machine Tool Specialties, Inc.

5280 S. 100th East Ave.

Tulsa, OK 74146

918-622-0018

jeffd@mtssales.com

www.machinetoolspecialties.com

N. NM

Jim Grisley

J.M. Grisley Machine Tools, Inc.

1485 South 300 West

Salt Lake City, UT 84115

801-486-7519

sales@jmgrisley.com

www.jmgrisleymachine.com

AR

Rick Boedeker

TechMachinery

133 Kelly Drive

Rogers, AR 72756

479-636-1884

boedeker@techmach.net

Southeast

VA, NC, SC

Ellison Technologies - Charlotte

9724 Southern Pine Blvd.

Charlotte, NC 28273

704-545-7362

cncinfo@ellisontechnologies.com

www.ellisontechnologies.com

AL, GA, MS, TN

Ellison Technologies - Nashville

7118 Crossroads Blvd.

Brentwood, TN 37027

615-661-6800

cncinfo@ellisontechnologies.com

www.ellisontechnologies.com

FL

Cindy Kush

APT Machine Tools

4250 St. Johns Parkway

Sanford, FL 32771

716-893-3643

machinesalesapt@aptmtools.com

www.aptmtools.com

Northeast

DE, MD

Mario Barello

Ellison Technologies, Inc.

410-215-1596

mbarello@ellisontechnologies.com

www.ellisontechnologies.com

NY

David Barclay

Syracuse Supply Machine Tools

43 Co. Rte. 59

Phoenix, NY 13135

315-695-2008

Kevin McCarthy

Syracuse Supply Machine Tools

575 Ludwig Avenue

Cheektowaga, NY 14227

716-893-3643

sales@syracuse-supply.com

www.Syracuse-Supply.com

CT, ME, MA, NH, RI, VT

Alan Lockery

ABLE Machine Tools Sales, Inc.

253 Silver Street

P.O. Box 507

Agawam, MA 01001

413-786-4662

www.ablemts.com

W. PA, WV

Dan Ambrogi

Allegheny Machine Tool Systems, Inc.

632 E. McMurray Road

McMurray, PA 15317

800-269-4090

724-942-4451

dana@allegmach.com

www.allegmach.com

E. PA

Randy Heck

Precision Machine Tool Solutions

571 Mountain Home Road

Sinking Spring, PA 19608

610-670-6780

rheck@pmtscnc.com

www.pmtscnc.com

Metro NY, NJ

Angelo Pennetti

21st Century Machine Tools

1140 Bloomfield Ave. Ste. 228

West Caldwell, NJ 07006

973-808-2220

kim@21stcmt.com

Midwest

IL

Ellison Technologies - Chicago

4630 Weaver Parkway

Warrenville, IL 60555

630-393-8900

cncinfo@ellisontechnologies.com

www.ellisontechnologies.com

OH, KY

Ellison Technologies - Cincinnati

5333 Muhlhauser Road

Hamilton, OH 45011

513-874-2736

cncinfo@ellisontechnologies.com

www.ellisontechnologies.com

Ellison Technologies - Cleveland

6955 Treeline Drive

Brecksville, OH 44141

440-546-1920

cncinfo@ellisontechnologies.com

www.ellisontechnologies.com

IA, NE

Ellison Technologies - Davenport

563-388-0800

cncinfo@ellisontechnologies.com

www.ellisontechnologies.com

MO

Ellison Technologies - St. Louis

16 MB Corporate Park Ct.

St. Charles, MO 63301

636-946-7077

cncinfo@ellisontechnologies.com

www.ellisontechnologies.com

IN

Ellison Technologies - Indianapolis

8930 Bash Road, Suite A

Indianapolis, IN 46256

317-577-3723

cncinfo@ellisontechnologies.com

www.ellisontechnologies.com

WI

Ellison Technologies - Milwaukee

N29 W23825 Woodgate Court West

Suite 100

Pewaukee, WI 53072

262-523-3400

cncinfo@ellisontechnologies.com

www.ellisontechnologies.com

MN, ND, SD

Ellison Technologies - Minneapolis

13400 10th Avenue North

Plymouth, MN 55441

763-545-9699

cncinfo@ellisontechnologies.com

www.ellisontechnologies.com

KS

Jeff DeLaughter

Machine Tool Specialties, Inc.

5280 S. 100th East Avenue

Tulsa, OK 74146

918-622-0018

jeffde@machinetoolspecialties.com

www.machinetoolspecialties.com

MI

Vince Mileto

Dynamic Machine Tools

1653 E. Maple Road

Troy, MI 48083

www.dynamicmachine.com

West

Southern CA

Ellison Technologies - Los Angeles

9828 Arlee Road

Santa Fe Springs, CA 90670

562-949-8311

cncinfo@ellisontechnologies.com

www.ellisontechnologies.com

Northern CA

Ellison Technologies - San Francisco

46758 Lakeview Blvd.

Fremont, CA 94538

866-814-7238

cncinfo@ellisontechnologies.com

www.ellisontechnologies.com

WA, N. ID

Ellison Technologies - Seattle

19625 62nd Ave. South, Suite A109

Kent, WA 98032

253-872-1661

cncinfo@ellisontechnologies.com

www.ellisontechnologies.com

OR

Ellison Technologies - Portland

10159 SW Commerce Circle #K

Wilsonville, OR 97070

503-682-3280

cncinfo@ellisontechnologies.com

www.ellisontechnologies.com

MT, S. ID, UT, WY, CO, N. NM

Jim Grisley

J.M. Grisley Machine Tools, Inc.

1485 South 300 West

Salt Lake City, UT 84115

801-486-7519

sales@jmgrisley.com

www.jmgrisleymachine.com

AZ, S. NM

Eugene Hendrix

Adams Machinery

215 S. Rockford Dr. #101

Tempe, AZ 85281

480-968-3711

Dick@adamsmachineryaz.com

www.adamsmachineryaz.com
