VMCs Built for Rigidity, Precision and Speed

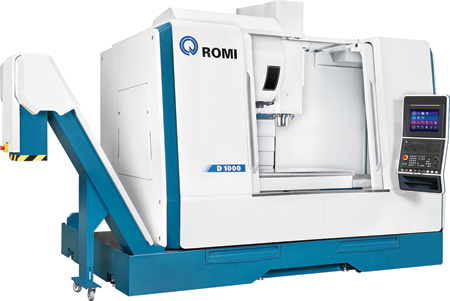

"Designed and built based on extensive customer research, the new generation Romi D Series vertical machining centers (VMCs) offer users higher productivity, robustness and precision. Like all Romi machine tools, they are built with Romi made monoblock cast iron beds that absorb vibration and allow consistent production of highly precise parts," said a company spokesperson.

In the USA, Romi offers three models, the D 800, the D 1000 and the D 1250. All three are equipped with big-bore 40-taper direct drive spindles with speeds of 10,000 RPM or 15,000 RPM. "Direct drive is low maintenance and improves accuracy and repeatability, while the big-bore 40-taper increases stiffness and allows increased depth of cut during machining," said the spokesperson.

The machines are equipped with thermal compensation with sensors to improve precision. Each model is equipped with a FANUC 0i-MF i-HMI CNC with 15" touchscreen, and a high speed and high quality package that allows better performance during machining.

"Linear roller guides on all three models facilitate feedrates up to 1,575 IPM (40 m/min), which allows for precise and fast acceleration and positioning. They also increase robustness during machining and load capacity (part weight) on the table," said the spokesperson.

The three models, D 800, D 1000 and D 1250, have a net machine weight of 20,500 lbs., 21,800 lbs. and 23,000 lbs. and a maximum machining volume of 31" x 24" x 25", 40" x 24" x 25" and 50" x 24" x 25". Each model is equipped with a 30 tool automatic vertical tool changer.

For more information contact:

Romi Machine Tools, Ltd.

1845 Airport Exchange Blvd.

Erlanger, KY 41018

877-ROMIUSA

sales@romiusa.com

www.romiusa.com

SOUTHWEST

AR, OK

W.D. Distributing

807 S.E. 83rd St.

Oklahoma City, OK 73149

918-894-8001 / 405-634-3603

www.wddistributing.com

NM

Magnum Precision Machines

3614 E. Southern Avenue #1

Phoenix, AZ 85040

602-431-8300

sales@magnumaz.com

www.magnumprecisionmachines.com

LA

Troy Schexnayder

S & S Mechanical Services, Inc.

46044 Irah Rd.

St. Amant, LA 70774

225-675-8825

SOUTHEAST

GA, FL, AL, MS

Skip Thompson

Applied Machine Solutions

2200 Airport Industrial Drive

Suite 300

Ball Ground, GA 30107

678-880-0893

s.thompson@appliedmachine.com

www.appliedmachine.com

VA

Dave Waddell

Machine Tools of Virginia, Inc.

8147 Shady Grove Rd.

Mechanicsville, VA 23111

804-569-6147

machinetoolsofva@hotmail.com

www.machinetoolsofvirginia.com

NC, SC

Precision Technologies

852 County Road 422

Englewood, TN 37329

423-887-5656

www.precision-tec.com

NORTHEAST

RI, MA, CT, NH, ME

Rice Machinery, Inc.

1104 Pontiac Avenue

Cranston, RI 02920

401-781-3010

www.ricemachery.com

E. PA, NJ, MD, DE

Glenn Weiss

Northeast Precision Machinery

410 Camars Dr.

Warminster, PA 18974

215-672-8112

glenn@northeastprecision.com

www.northeastprecision.com

Midwest

KY, IN, OH

Clayton Andrello

Direct Sales Manager

Romi Machine Tools, Ltd.

1845 Airport Exchange Blvd.

Erlanger, KY 41018

859-322-3965

candrello@romiusa.com

www.romiusa.com

W. MI

Machine Ethics Inc.

1889 Sun Dolphin Dr.

Muskegon, MI 49444

231-739-7800

www.machineethicsllc.com

IA, NE, MN, ND, SD

Greenway & Associates

PO Box 253

Orange City, IA 51041

712-737-8700

www.greenwayassoc.com

N. IL

Machine Tool Diagnostics

2059 Albright Rd.

Montgomery, IL 60538

630-229-6220

www.machinetdinc.com

WI, MI (Upper Peninsula)

Alternative Machine Tools, LLC

300 Venture Drive

Dousman, WI 53118

262-965-3655

www.alternativemachinetool.com

S. KS

W.D. Distributing

807 S.E. 83rd St.

Oklahoma City, OK 73149

918-894-8001 / 405-634-3603

www.wddistributing.com

WEST

CA, N. NV

People Tech, Inc.

Northern CA Office

3006 Lawrence Expressway

Santa Clara, CA 95051

408-598-2200

support@peopletechmt.com

www.peopletechmt.com

People Tech, Inc.

Southern CA Office

15910 Ventura Blvd., Suite 1410

Encino, CA 91436

949-398-0400

UT, WY, ID, MT

Clark Smith

Smith Machinery Co, Inc.

41 W. Guest Ave.

Salt Lake City, UT 84115

801-236-6403

csmith@smithmachinetools.com

www.smithmachinetools.com

AZ, CO, S. NV

Magnum Precision Machines

3614 E Southern Ave. #1

Phoenix, AZ 85040

602-431-8300

sales@magnumaz.com

www.magnumprecisionmachines.com
