Double Column CNC Machining Center

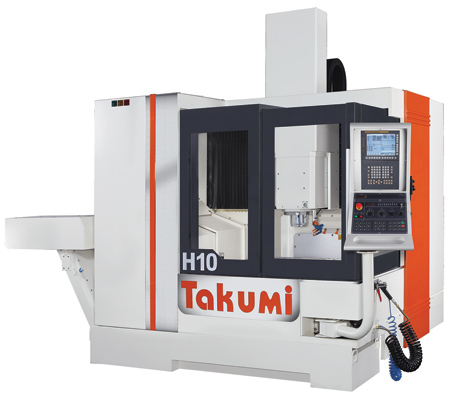

The H10 (XYZ travels: 40.16" x 27.56" x 19.69") is a double column machining center that includes a 15,000 RPM inline spindle with a BIG-PLUS CAT 40 spindle taper. "The H series by Takumi was designed for parts that require outstanding speed and accuracy and unparalleled surface finish," said a company spokesperson.

The H10 has a rigid and thermally stable double-column design to support the die/mold and aerospace industries. The ladder design of the bridge proves greater support for the head casting and extra-wide door openings facilitate loading and unloading.

The Takumi H10 is equipped with the latest FANUC 31i-MB control with 1 GB data server. Optional accessories include a ballscrew cooling system, CAT3 compliance package, chip conveyor and cart, and part and tool probe measurement systems.

"Takumi USA has partnered with Renishaw to be the first CNC machine tool brand to offer Renishaw's Set and Inspect app for the FANUC control," said the spokesperson. "Set and Inspect will help job shops of all sizes be more efficient and profitable by making it possible for anyone with a part probe to immediately add inspection probing to their process and reap the full financial benefit of probing on a machine tool. Unlike traditional programming software, Set and Inspect is so easy to use that virtually no training is required: the software's intuitive interface guides the user through the process of creating a probing cycle, automatically generates the required machine code for the probing cycle and sends it to the control. Due to the intuitive graphical user interface (GUI) of the Set and Inspect app, even inexperienced operators can learn how to use it in 30 minutes or less and immediately create routines to increase production efficiency, decrease operator intervention, decrease scrapped parts and decrease re-work time with inspection probing."

This feature is now available on the Takumi H-Series 3-axis high-speed double-column CNC machines, the Takumi V-Series 3-axis box way CNC machines and the VC-Series 3-axis heavy-duty general purpose machining centers.

H10 specifications:

  • Table size: 41.3" x 27.6"
  • Table load: 1,760 lbs.
  • XYZ travels: 40.16" x 27.56" x 19.69"
  • XYZ rapids: 1,259 IPM
  • Spindle taper: BIG-PLUS CAT 40
  • Spindle RPM: 15,000
  • Spindle HP: 20.1/24.8
  • Spindle torque: 105.5 ft-lbs.
  • ATC stations: 30
  • Machine weight: 20,020 lbs.

For more information contact:

Takumi USA

7220 Winton Drive

Indianapolis, IN 46268

844-302-3792

info@takumiusa.com

www.takumiusa.com
