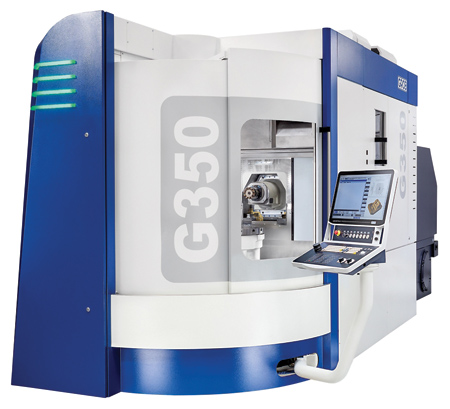

5-Axis Universal Machining Center



GROB Systems offers its second-generation G350 featuring a compact design, enhanced milling performance, high visibility and optimized work area access. The GROB G350 is suitable for use in aerospace, die and mold industries or medical applications.

"The GROB Systems G350 Universal Machining Center delivers high productivity, optimum availability and excellent maintenance access," said a company spokesperson. "What is more, it features a unique machine concept: three linear and two rotary axes permit 5-axis simultaneous machining and simultaneous interpolation. The machine's unique axis arrangement permits upside down machining, offering almost limitless possibilities for part machining. Meanwhile, the horizontal spindle position permits the longest possible Z-travel path and optimum chip fall."

The arrangement of the three linear axes minimizes the distance between the guides and the machining point (TCP), enhancing stability. Due to the machining center's axis concept, the full tool length can be employed in any axis position, even with maximum part size. "This 'tunnel' concept provides the basis-even with extremely long tools-for being able to swivel and machine the largest possible component within the work area without collision," said the spokesperson.

With a swivel range of 230° in the A-axis and 360° in the B-axis, the G350 offers the greatest possible positioning flexibility, while the machine bed's intrinsically stiff welded design provides machine rigidity. The G350 also features absolute position encoders, an air purge seal in all linear and rotary axes, and a disk-type tool magazine for fast tool change.

The central, ergonomic arrangement of the machine components provides optimal accessibility to the fluid cabinet and electrical cabinet, as well as easy access for preventive maintenance and inspection.

For more information contact:

GROB Systems, Inc.

Machine Tool Division

1070 Navajo Drive

Bluffton, OH 45817

sales@grobgroup.com

www.grobgroup.com/en/
