High Speed Milling and Moldmaking

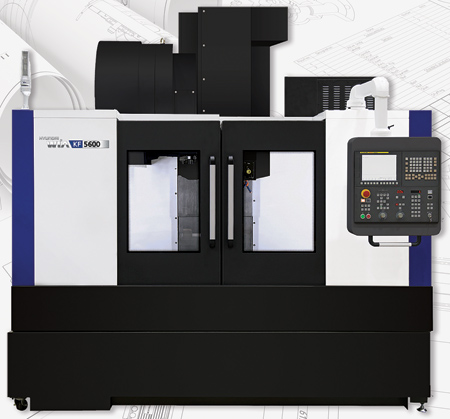

Hyundai WIA's KF series features a rigid machine structure for accurate and consistent metalcutting performance. The KF5600 is standard with a 20 HP 8,000 RPM or 25 HP 12,000 RPM high-speed direct coupled spindle that is directly driven by the motor (no belts), simplifying the drive system structure, reducing noise and vibration and lowering heat generation, making this machine suitable for many high value applications. For high speed cutting applications, the KF5600 is available with a built-in spindle drive in the 15,000 and 20,000 RPM models.

"With a quick tool change time of 3.2 seconds chip-to-chip, the KF5600 reduces idle time and improves productivity, providing high-volume, high-precision machining applications. A high degree of production flexibility is achieved in the KF series by offering a 30-tool magazine as standard (40-tool magazine as an option)," said the spokesperson. The KF5600C version has 25" in extended Z-axis travel, which has a max range of 5.9" - 30.9" allowing more clearance for longer tools, taller parts and larger diameter (big bore) rotary tables. With a larger standard selection of tools and Hyundai's random tool selection method, tool change time is reduced.

Key machine highlights:

  • HYUNDAI - ALL-IN-ONE Mold Package: To enhance mold machining, the HYUNDAI WIA ALL-IN-ONE Mold Package (20K spindle) is provided as a standard feature on this machine. With cutting air blow, auto power off, heat distortion compensation and an automatic tool measuring device, the KF5600 is designed to provide accurate and consistent high quality surface finishing and contouring.
  • Increased rigidity with linear roller guideways
  • Extended travel: (X/Y/Z): 43.3"/22"/20.5"
  • 3.2 second chip-to-chip tool change time
  • Rapid feedrate (X/Y/Z): 40/40/36 m/min (1,575/1,575/1,417 IPM)
  • Flexible manufacturing with 30 tools as standard
  • KF Series also includes: KF4600, KF6700.
