Large Capacity Milling-Turning Center

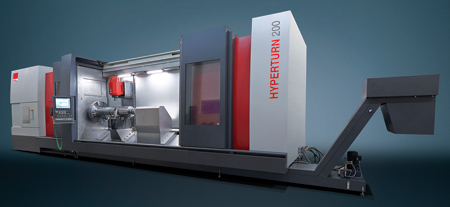

EMCO Corporation's Hyperturn 200 Powermill high-performance milling-turning center is designed for complete precision machining of large workpieces up to 1,000 mm in turning diameter and for lengths up to 6,000 mm, workpiece weight of 1,500 kg in the chuck and up to 6,000 kg between chuck and tailstock.

The main spindle is designed for heavy cutting with a maximum torque of 6,410 Nm and 84 kW. The machine can process large, complex workpieces in general machining, aerospace, shipbuilding, power engineering and the production of shafts for diesel engines.

The moving column of the Hyperturn 200 Powermill is built in a box-in-box ram construction, assuring optimum rigidity and stability for machining with a high level of accuracy. The B-axis is equipped with a torque motor and integrated into the ram design. The cross slides consist of a welded steel construction with high torsional and bending stiffness, a crucial factor for the quality of the turning and milling.

The machine features a turning spindle with 84 kW, 6,400 Nm torque, milling spindle with 80 kW at 700 Nm.

It can be equipped with two different milling spindles. The basic machine is equipped with a high torque milling spindle -430/630 NM - at 6,500 RPM, and optionally a high-speed milling spindle (10,000 RPM / 230/340 Nm) is available as an alternative, e.g. for the special machining of light metal alloys, aluminum, etc.

The robust and flexible tailstock can be expanded with a high-quality counter spindle with the same specifications as the main spindle.

The basic machine provides 50 tool positions at the front; 100 and 200 positions are also an option, available either with an HSK 100 or Capto C8 connector. Other customer-specific adjustments are in the number of NC steady rests that can be used, 5-axis simultaneous machining, automatic tool presets and workpiece measurement sensors, a boring bar pick-up system, etc.

The HT 200 Powermill is equipped with a Siemens 840D SL including Shop-Turn, which is used in the other models from the Hyperturn range. Users can use the EMCO CPS Pilot system for the 1:1 virtual machine as well as 100% simulation of the machining with collision detection.

For more information contact:

EMCO Corporation

46850 Magellan Dr., Unit 160

Novi, MI 48377-2448

248-313-2700

info@emco-usa.com

www.emco-world.com
