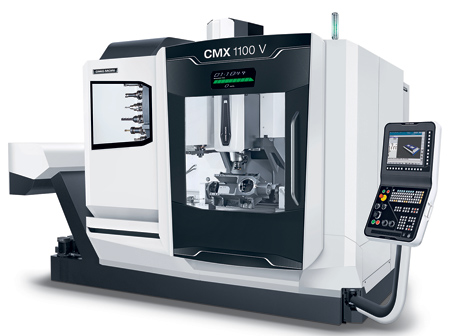

VMC Series Designed for Compact, Stable Milling



DMG MORI's CMX V series is designed to be productive, flexible and easy to operate. The modular design of the vertical machining centers (VMCs) enables fast and flexible configuration, and a variety of options and technological solutions are available.

Due to their high versatility, CMX 600 V, CMX 800 V and CMX 1100 V can machine a number of workpieces for various fields of application. The range of machines in this series enables workpiece weights of up to 2,205 lbs. and provides travel paths of 26.6" x 22" x 20.2" for the smallest model, and up to 43.3" x 22" x 20.2" for the largest. Rapid traverses are 30 m/min in all axes, with FANUC control even at 36 m/min in X- and Y-axis. The standard 12,000 RPM high-performance spindle (15,000 as option on CMX 1100 V) is designed for a broad range of applications, continuous operation durability and high-quality manufacturing results.

The roller guides used in the CMX V series are designed to provide stability and precision along with rigidity and durability. Due to extensive FEM analysis, the CMX V series features a compact and rigid machine structure based on a grey iron casting C-frame for high rigidity. The cabin design of the CMX V series features improved operator ergonomics and the table and workpiece are accessible by crane. The central lubrication and other peripheral devices requiring regular maintenance are set up in an easily accessible location to facilitate maintenance and inspection.

Control choices include a 19" DMG MORI SLIMline multi-touch control and Operate 4.7 on SIEMENS as well as a 15" DMG MORI SLIMline optionally with HEIDENHAIN TNC 620 or MAPPS IV on FANUC.

For more information contact:

DMG MORI - Americas Headquarters

2400 Huntington Blvd.

Hoffman Estates, IL 60192

847-593-5400

Service Hotline:

855-DMG-MORI (364-6674)

www.us.dmgmori.com
