Angle Roll at FABTECH

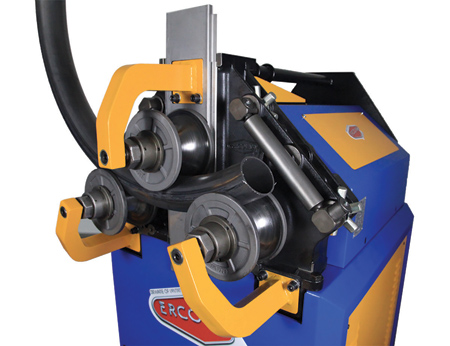

Capable of bending a wide range of tubes, pipes and profiles, Ercolina's CE60H3 angle roll model is designed to operate in either the vertical or horizontal position with a maximum bending capacity of 3" schedule 10. Included control tower with low voltage controls has foot pedal for hands-free operation. Programmable touchpad controls with digital center roll positioning increase repeatability. Universal tool set is included for multiple profiles and this model conveniently uses the same tooling as Ercolina's CE50 model. Additional features include heavy duty structure and rigid components for high section modulus ratings and reinforced engineered mainframe design, as well as touchpad controls with digital center roll positioning on remote pendent with low voltage controls and foot pedal switch. Memory storage offers eight individual programs and unlimited passes.

"What makes the CE60H3 unique is that it features individual tie bar supports for each shaft to increase roll shaft rigidity and radii accuracy," said a company spokesperson. CE60 design increases distance between lower shafts and interaxes to accommodate a wider range of profiles. Larger hydraulic cylinder increases machine capacity.

For more information contact:

CML USA, Inc. Ercolina

3100 Research Parkway

Davenport, IA 52806

563-391-7700

info@ercolina-usa.com

www.ercolina-usa.com

FABTECH Booth A4117
