Compact Horizontal Band Saw

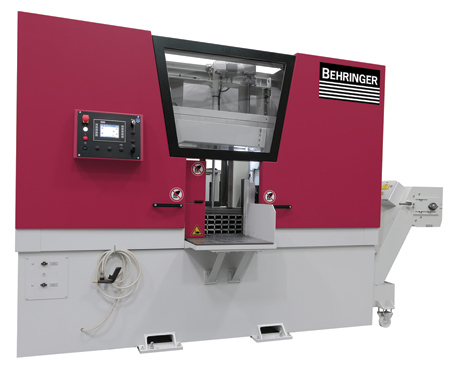

The HBE Dynamic Horizontal Bandsaw from Behringer offers features designed to improve performance and precision while maximizing user convenience and safety. "In addition, the HBE Dynamic Horizontal Bandsaw has a unique cast iron dual column construction frame that provides exceptional rigidity, eliminating stress, reducing vibration and enhancing blade tension," said a company spokesperson. Two linear ways and four guides facilitate precise and accurate vertical movement of the blade. Cutting accuracy is further enhanced by the horizontal band arrangement and hydraulically tensioned blade, and double roller bearings for the blade guiding.

Innovative features on the HBE saw include a servo-driven precision downfeed control that automatically adjusts blade pressure, creating an optimal balance of feedrate and pressure for improved quality and cutting rates, while extending blade life. An electrically powered ball screw driven material feed gripper eliminates backlash and helps ensure precise material positioning for improved accuracy.

The HBE Series saw also features an automatic feed control (AFC). The Behringer AFC feature automatically adjusts cutting parameters such as blade speed and downfeed rate to the material grade and shape. This allows operators to create flexible material programs, leveraging cutting data based on specific material grade. Additionally, a fault / alert history may be viewed at any time by the operator. The detailed information displayed in plain text is useful for both planning and analysis of past projects.

"HBE saws utilize a high torque, state-of-the-art frequency-controlled blade drive that requires low power consumption, yet produces the blade power and speed needed for fast cutting and peak throughput rates," said the spokesperson. The enclosed HBE design promotes safe operator use, stays clean and minimizes noise while providing a large observation window. An intuitive NC control system enables user-friendly operation.

The HBE Dynamic saw is available in five models: 261A; 321A; 411A; 511A; and 663A. The HBE cutting range is from 10.2" to 26.0" diameter for round stock and from 11.8" x 10.2" up to 28.0" x 26.0" for flat stock. Stroke length is 25.6" and blade speed ranges from 50-350 ft/min.

For more information contact:

Behringer Saws Inc.

721 Hemlock Road

Morgantown, PA 19543

610-286-9777

sawing@behringersaws.com

www.behringersaws.com

FABTECH Booth A4206
