Multifunctional Portable Magnetic Drill

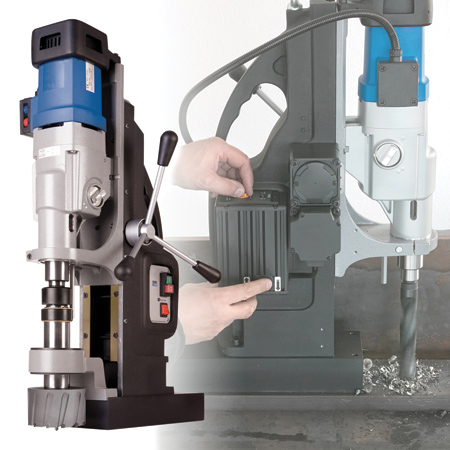

CS Unitec's new MAB 1300 V is a strong portable magnetic drill with adjustable automatic feed and reverse. The drill features an automatic feed mechanism with power retraction, making it suitable for production applications. The power feed controls drill pressure and feedrate to maintain optimal RPM and maximize cutter life.

The powerful 20 amp/110 volt double-insulated motor of the MAB 1300 V is designed for continuous use in heavy-duty drilling applications. The versatility of the 4-speed oilbath gearbox (30-80, 50-120, 130-350 and 210-550 RPM) allows drilling of holes from 7/16" up to 5-1/8" diameter with annular cutters in structural steel and other metals. With its 12" stroke, the drill's capabilities include: large-hole tapping up to 1-5/8" diameter; twist drilling up to 1-3/4"; countersinking up to 3"; and reaming up to 2". The MAB 1300 V has a 1-1/4" arbor with an adapter for 3/4". The unit includes an integrated automatic cooling / lubrication system.

The high-density, three-coil magnet has a holding strength of up to 23,600 lbs., providing the pulling power required for heavy-duty drilling. Integrated sensors include CoolMag for magnet overheating protection, SafeMag for visual magnet adhesion indication and an electronic safety shutoff sensor to automatically shut down the drill motor if the magnet loses contact with the material. The drill weighs 112 lbs. and is equipped with an eyehook for lifting with a hoist.

For more information contact:

CS Unitec, Inc.

22 Harbor Avenue

Norwalk, CT 06850

888-287-8704

info@csunitec.com

www.csunitec.com

FABTECH Booth B33061
