Hydraulic System Solutions

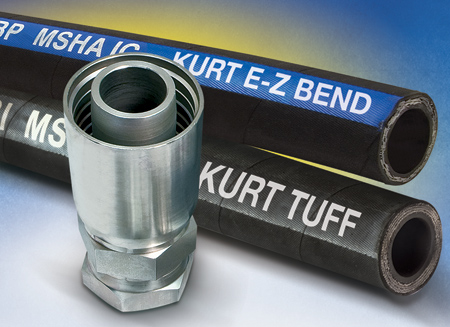

"Hydraulic system designers can now handle the most common pressure ranges for their applications selecting from two different hose styles and a single coupling style from Kurt Hydraulics. For pressure ranges of 3,000 to 6,500 PSI, Kurt Tuff and E-Z Bend hydraulic hose along with W-Style couplings provide a total hydraulic solution," said Scott Czupryna, Sales Manager for Kurt Hydraulics.

Kurt Tuff Hose Handles 3,000 to 6,500 PSI Pressures

Reinforced internally with four spiral layers of high tensile steel wire braid, Kurt Tuff Spiral Flex hose has a very durable oil, ozone and abrasion resistant synthetic outer cover. "It has ten times the abrasion resistance compared to standard hose cover," said a company spokesperson. "Impulse tested for up to 1,000,000 cycles, Kurt Tuff Spiral Flex hose withstands temperatures from -40 °F up to 250 °F and meets flame resistant MSHA designation. It meets or exceeds requirements of SAE DIN 20023."

Kurt E-Z Bend Hose is More Flexible to Save Space

For tight applications and downsized equipment, E-Z Bend Hose has half the bend radius of a standard hose for easier routing and more space savings. Providing both greater flexibility and strength, E-Z Bend hose is suited for mobile hydraulic, compact applications requiring hydraulic hose with tight bend radius using minimal installation force. With a working hose pressure range from 5,000 PSI to 6,000 PSI, E-Z Bend has a working temperature range of -40 °F to +212 °F and meets flame resistant MSHA designation.

Kurt W-Style Couplings Compatible with Kurt Tuff and E-Z Bend Hose

Kurt Hydraulics full line of W-Style couplings is compatible with Kurt's low pressure braided hose and high-pressure spiral hose. Handling more applications and requiring less inventory, Kurt W-Style Couplings are designed for non-skive high-pressure spiral hose (6,000 PSI) and all wire braided hose applications. These couplings are available in 742 different end types.

"Installers, distributors and end users no longer need to inventory 3, 4 or sometimes even 5 hydraulic hoses and 2 or more couplings for the most common hydraulic pressure applications," said Czupryna. "Kurt simplifies life for everyone with less selection complications and less inventory needed to get the job done. It makes everything easier and more cost effective."

For more information contact:

Kurt Hydraulics

5280 Main Street NE

Minneapolis, MN 55421

866-257-7995

hydraulicsales@kurt.com

www.kurthydraulics.com
