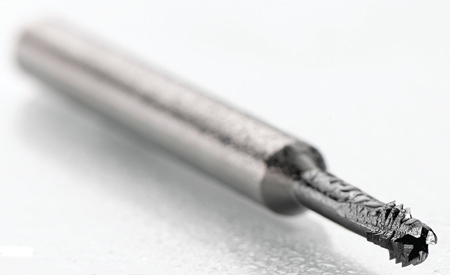

Circular Thread Milling Cutter



It is possible to perform drilling and threading with the same tool, even in working depths up to 3 x D1. "The DC Swiss with internal coolant starting from 3 mm (.1181") makes this possible," said a company spokesperson.

"The improvements in the DC Swiss compensate the known disadvantages of circular milling," said the spokesperson. The internal coolant has a double function: Evacuating the large volume of chips and cooling down the cutting edge constantly. The raw material has been chosen to fulfill the tough conditions when drilling and the polyvalent PVD coating is designed to minimize the tools wear-out.

The is available in metric sizes from M3 to M16, UNC from 4-40 to 5/8-11 and UNF from 4-48 to UNF 5/8-18. Type ZBGF6065VS is designed for threading up to 2 x D1 or for deeper holes type ZBGF6067VS up to 3 x D1.

For more information contact:

DC SWISS SA

Grand Rue 19

CH-2735 Malleray

Switzerland

+41 32 491 63 63

info@dcswiss.ch

www.dcswiss.com
