Cut and Bevel Pipe up to 63" Diameter

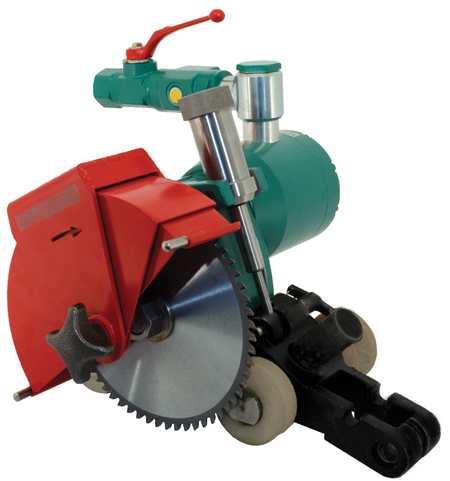

CS Unitec's new pipe cutting machine cuts and bevels pipe from 6" to 63" diameter with a wall thickness up to 2". This 2-speed, pneumatic machine operates at 1,800 RPM for cutting and 350 RPM for low-speed / high-torque beveling. Model 5 8002 7000 cuts ductile iron, ferrous and non-ferrous metal including stainless steel, HDPE, plastic, cement pipe and more. This versatile machine also bevels 45°, 60° and 90° angles with optional blades for on-site weld preparation. The pipe cutting machine uses 77 CFM air volume at 90 PSI air pressure and weighs 28 lbs. for easy portability. Its compact design and operation allows pipe to be cut underground with minimal excavation.

ATEX Certified under Class II 2 GcT6, the tool can be used in industrial zones where flammable gas, vapor, mist and dust may be present and where surface temperatures do not exceed 185 °F (85 °C). The machine's ATEX classification and durability make it suited for use in refinery, offshore oil, marine, petrochemical, power generation, industrial plant maintenance, pipe line construction and demolition applications.

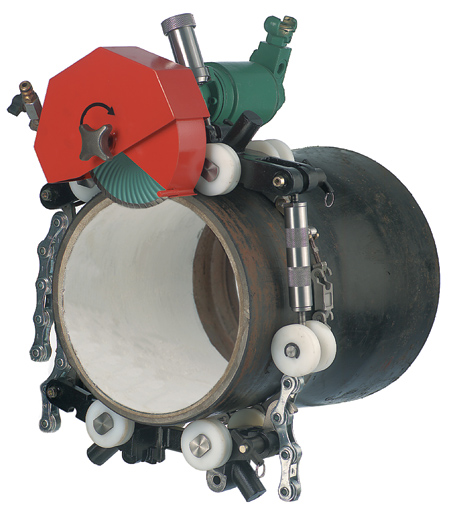

The pipe cutting machines features two 7" blades - one carbide tipped and one diamond coated - with blade guard, adjustable cutting depth and water connection for cooling the blade. The machine is guided manually with the hand lever feed to make a 360° cut in the pipe. The guide chain can be adjusted by adding or removing chain links.

For more information contact:

Thomas Carroll, President

CS Unitec, Inc.

22 Harbor Avenue

Norwalk, CT 06850

888-886-7712 / 203-853-9522
