Expanded Metalforming Line



JET has expanded its metalforming line by 10 new machines.

These new JET metalforming machines respond to the production needs of HVAC installers, fabricators, welders, tool and die shops, plant and building maintenance, schools, mechanical contractors, racing teams, automotive repair shops, military bases, aircraft and shipyard repair facilities, home shops and more.

JET's expanded metalforming line includes the following new machines:

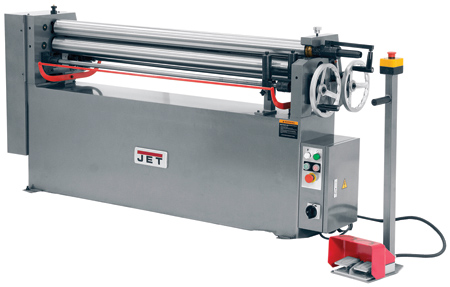

  • The JET 60" x 14 Gauge Electric Slip Roll available in 3 HP, 230V, single phase (756030) and 3 HP, 230/460V, 3-phase (756035) models. The machine has a three-roll design with two drive rolls, and is controlled by a satellite foot pedal with emergency stop. A digital read-out allows back roll positioning. All rolls are constructed of hardened, polished high-carbon steel. The heavy-duty frame and base, plus welded cabinet, ensure precise rolling of mild steel sheet up to 14 gauge and 60" in length. An integrated safety bar system along the entire bending length permits quick stoppage of the machine. Conical attachments are available for rolling cones, tapers and conicals
  • JET 72" x 16 Gauge and 72" x 12 Gauge Box and Pan Brakes, available in 72" x 12 Gauge (754125) and 72" x 16 Gauge (754130) models. A wide assortment of finger widths provides versatility. With all fingers installed, the machine can be used as a straight bending brake. It features a tool-less angle stop and soft grips on the counter weight bars to protect the operator's hands. Body sections are welded-steel-plate with heavy truss rods and braces. Both the bed and apron are bored in-line for maximum accuracy
  • JET 50" x 16 Gauge Dual Sided/Universal Box and Pan Brake with Foot Clamp featuring a graduated scale on each side to accurately set lower beam parallelism. Removable, hardened and ground fingers provide versatility in making custom bends, and repeat bends are made easily with a stop rod and collar. A foot clamp with non-skid pedal allows hands-free clamping. Rubber stops on the rear of the lower arm prevent contact with the support frame.
  • JET Manual and Electric/Manual Roll Benders feature an open-face design that allows the operator to roll full circles. A reduction gearbox helps reduce operator fatigue. Various sizes of segment rolls are provided for flat bar, square tubing and angle iron. The Electric/Manual model is driven by a two-speed, 1 HP, 230V, 3-phase motor. Both machines are constructed of precision-machined, cast iron with hardened rolling shafts and bronze bushings. A base with storage cabinet comes standard
  • JET Pneumatic and Electric Sheet Metal Notchers equipped with strong, casted heads for durability and rigid sheet metal stands to maintain cutting accuracy. Blades are guarded for safety and can be re-sharpened for prolonged life. An enclosed cabinet with storage shelf is included. The pneumatic model has a working pressure of 115 PSI, allowing it to be used with nearly any standard compressor. The electric model features emergency stops on both the machine and foot pedal
  • JET Electric Pipe Notcher designed to continuously notch Schedule 40 pipe. This benchtop machine is powered by a 2 HP, 220V, single phase motor, and has a magnetic switch for motor protection. Safety guards surround all notching dies. Replacement dies are available in several sizes
  • JET 20 Gauge Lockformer forms Pittsburgh seams in mild steel sheet up to 20 gauge. It features an all-steel forming head with hardened and ground shafts. Forming rolls are case hardened and use matching cut gears with needle roller bearings for long life. The 1-1/2 HP, 115V, single phase motor is protected by a magnetic switch. The cabinet has a reinforced undercarriage to prevent damage from lifting with a fork lift. A tool-less, roller cover panel is provided, as well as an onboard tool storage tray. Optional accessories include a double seam attachment (756095), drive cleat attachment (756096), flange attachment (756097) and right angle attachment (756098)
  • JET 16 Gauge Shrinker/Stretcher with Foot Pedal enables the operator to work hands-free. Constructed of heavy-gauge sheet metal, the stand is mounted on a mobile base for portability. Forming depth and pressure are adjustable. The foot pedal is equipped with a rubber, non-skid pad. Handy storage for additional jaws is provided on the post for easy access. Optional accessories for forming aluminum are available, including aluminum shrinker jaws (755018) and aluminum stretcher jaws (755019).

"We stand behind the work of JET's customers and listen to their input," said Peggy McGann, Product Manager for JET Metalworking. "Feedback from users in the field, along with the expertise of engineers and others, has spurred a number of design innovations in our expanded metalforming line."

All equipment in JET's expanded metalforming line is covered by a two-year warranty, as well as JET's RED Assurance service and support guarantee program.

For more information contact:

JPW Industries

427 New Sanford Road

La Vergne, TN 37086

615-793-8900

www.jpwindustries.com

www.jettools.com
