Compact Trunnion Rotary Table

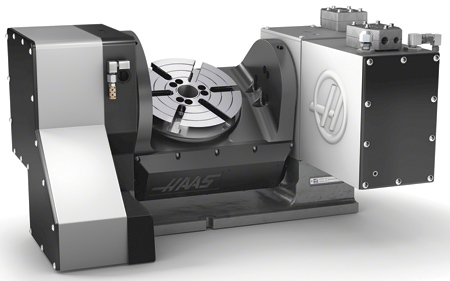

The new TR200Y dual-axis trunnion rotary table from Haas Automation is designed to put 5-axis capabilities well within reach of the average job shop, and its compact size provides greater mounting flexibility.

The TR200Y is designed to mount in the Y direction (front to back on the table) of a mid-size VMC. At less than 27" (686 mm) wide and only 20" (508 mm) deep, the TR200Y easily fits on one end of the machine's table, freeing up the remainder for additional fixtures or vises. The TR200Y has a 200 mm (7.87") T-slot platter, and will swing parts up to 8.1" (206 mm) diameter. The maximum platter capacity is 80 lbs. (36 kg). The trunnion provides ±120° of tilt and 360° of rotation for full simultaneous 5-axis motion, or to position parts to almost any angle for machining. It can easily be removed when not needed.

Brushless servomotors provide 150 ft-lbs. (203 Nm) of spindle torque on both axes of the TR200Y. Brake torque is 300 ft-lbs. (407 Nm) on the tilt axis and 100 ft-lbs. (136 Nm) on the rotary axis. Speeds are 130 deg/sec on the rotary axis and 100 deg/sec on the tilt axis. The trunnion's precision-ground platter of heat-treated 4140 alloy steel has six standard 5/8" (16 mm) T-slots equally spaced at 60° for easy fixturing.

Plug & play compatibility simplifies connecting the TR200Y to a Haas mill with 4th and 5th axis drives, and the available programmable servo control makes it easy to interface the rotary to almost any machine.
