New Pulsed Fiber Laser Welding System



Control of pulse duration and frequency makes new 70 watt model ideal for metal processing.

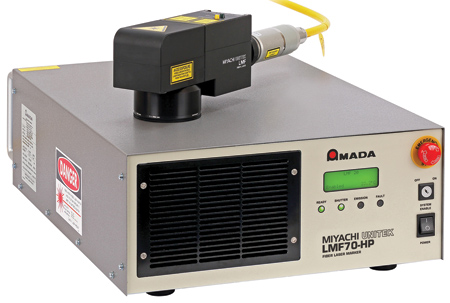

Amada Miyachi America Inc. has announced the availability of the LMF70-HP, an addition to its LMF Series of lasers. The 70 watt (W) LMF70-HP is suited for welding small components and thin metals up to 0.01" (0.25 mm) thick. It is particularly suited for welding battery tabs to cans (two thin sheets of metal), but can also weld thin wires (thermocouples, guidewires, etc.). In addition to welding, the unit is capable of engraving, deep engraving and cutting of metal, plastic welding and general purpose high speed marking.

The laser is offered as an OEM product with galvo scanning beam delivery and controller or it can be integrated into the LMWS platform, a CDRH Class 1 laser workstation offering a wide range of integration flexibility, depending on processing and facility requirements.

The LMF laser series has numerous performance features to match the right laser to the right application. The system is designed with multiple integration options to suit stand-alone operation, full production automation, as well as low volume prototype development. The air-cooled, sealed industrial package has been designed for operation in harsh environments and comes with powerful control software with user friendly interface. The unit complies with IEC13849-1 category 3 Performance Level d (PL d) safety circuitry with proper integration. It is equipped with a Marker Motion unit with integrated stage controllers for up to 4 axes, providing an economical motion platform.

For more information contact:

Amada Miyachi America, Inc.

1820 S. Myrtle Ave.

Monrovia, CA 91016

626-303-5676

info@amadamiyachi.com

www.amadamiyachi.com
