Consumables for Air Plasma Systems



Hypertherm, a U.S. based manufacturer of plasma, laser and waterjet cutting systems, has introduced FlushCut consumables for select Powermax air plasma systems. The consumables available now for Powermax105 and Powermax125 systems provide users with the ability to cut closer to base materials than ever before.

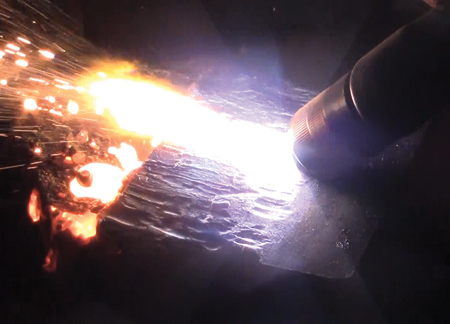

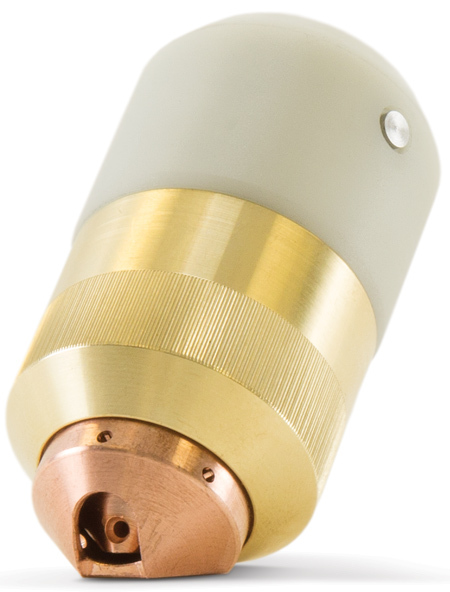

FlushCut consumables feature an angled nozzle bore that delivers the plasma arc at a 45° angle designed for challenging removal applications. Instead of locating the nozzle opening at the tip as is typically done, the FlushCut nozzle orifice is located on the side. This essentially bends the plasma arc, causing it to exit the torch at an angle nearly parallel to the workpiece. As a result, Powermax users can cut closer, or more flush, to the base metal than ever before, reducing grinding work and increasing the opportunity to reuse lugs and attachments.

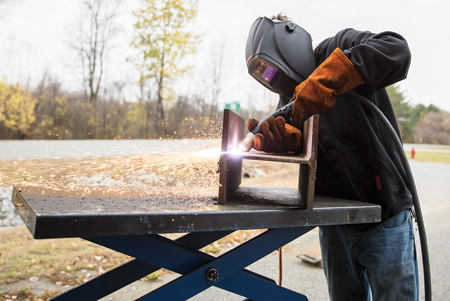

The new flush cutting process is helpful for a number of applications including jobs that require the separation of two metals. The consumables allow users to more easily remove lugs, temporary weld supports and pad eyes without damaging the base material holding the piece in place. In addition, the flush cutting process simplifies the cutting of weld access holes in I-beams, and also makes it easier to remove bolts or other parts from metal plate.

For more information contact:

Hypertherm Inc.

P.O. Box 5010

21 Great Hollow Rd.

Hanover, NH 03755

603-643-3441

info@hypertherm.com

www.hypertherm.com

www.hypertherm.com/FlushCut
