Multitasking Lathe Combines Operations for Efficient Machining

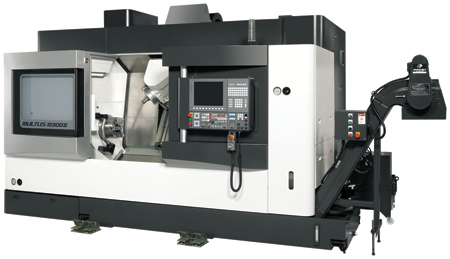

Okuma's MULTUS B300II is a one-saddle multitasking CNC lathe designed to reduce set-up time and machining costs. "This multitasking machine offers a variety of operations to improve machining efficiency while offering reliable accuracy and power to keep non-cutting time to a minimum," said a company spokesperson. "It is excellent for machining process-intensive parts, such as those in aerospace, automotive, oil/energy, medical and construction industries."

The MULTUS B300II features a compact design and a rigid bed and guideway system to help provide powerful, stable machining. The optional W version with sub-spindle enables a part to be handed from one spindle to the other, allowing complex parts to be machined on both ends without operator invention. Standard Collision Avoidance reduces operator mistakes in manual, MDI and auto modes. To further enhance efficiency, the base offering has a 40-tool automatic tool changer (ATC), with an optional 60-tool ATC available.

Key features and benefits of the MULTUS B300II:

  • 225° B-axis range with 6,000 RPM H1-milling spindle with dual function (L/M)
  • H1 dual function spindle head utilizes CAPTO-C6 tooling and has a 15/10 HP PREX milling motor spindle (opt: 10,000 RPM - 21/15 HP)
  • H1 turret has a 0.001° B-axis and compound motion Y-axis for machining flexibility
  • Main spindle is equipped with a full contouring C-axis.

"This multitasking machine is designed with ease of operation in mind and is equipped with Okuma's OSP-P300S control," said the spokesperson. "With single-mode operation and enhanced graphics, novice operators as well as professional machinists will experience a smoother, more effective way of producing parts."

For more information contact:

Okuma America Corporation

11900 Westhall Drive

Charlotte, NC 28278

704-588-7000

www.okuma.com
