Auto-Loading CNC Lathe

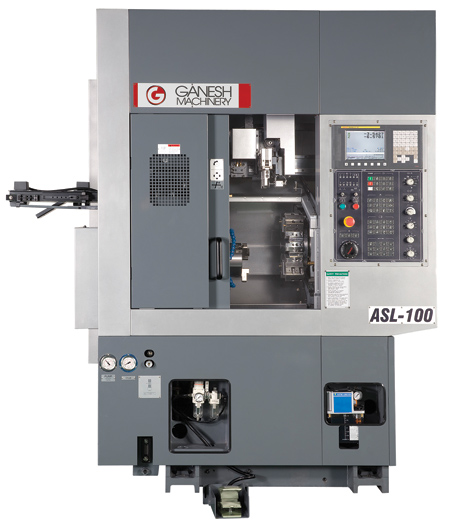

Ganesh Machinery will introduce the new ASL-100 CNC lathe with automatic part loading and unloading capability for processing parts up to O2.3" at IMTS 2016. A 6,000 RPM 15 HP spindle with a 6" hydraulic chuck is standard. The machine is equipped with a 12 station tool turret, and a driven-tool turret and Y-axis is available. The dual parts gripper receives a new part from an incoming parts belt and loads it into the lathe spindle after removing the finished part from the chuck. The finished part is placed on an outgoing finished parts belt and a new part is loaded into the gripper unit for continuous automatic operation. The incoming parts belt can be fed by a vibratory bowl feeder or a high-capacity parts storage system for high production applications.

Additionally, Ganesh will be showing the Cyclone-32 CS 7-axis Swiss-style CNC lathe for bar work up to 1-3/8" diameter with 27 tools including 11 driven tools standard. This dual-opposed sliding headstock machine features 6,000 RPM and 10 HP spindles. The Cyclone-52 BY2 9-axis 2" multitasking bar machine with opposed spindles and 36 tools with 18 driven tools including 12 B-axis live tools will also be shown, running an AR-15 automatic rifle bolt. The Ganesh VFM-2818 3-axis milling machine with a 12,000 RPM spindle and 28" X 18" X/Y travels moving at 1,417 IPM will also be making parts. The CNC mill will be powered by the Mitsubishi M830 control with a 4,500 block per second processing speed and 2,000 block look-ahead.

There will also be two Ganesh machines in the Mitsubishi show booth at IMTS. A Ganesh ASL-6 slant-bed CNC lathe will have a Mitsubishi robot loading raw parts and unloading finished parts showing additional labor saving automation. There will also be a Ganesh VFM-2818 vertical CNC milling machine with a Nikken 5-axis trunnion performing full 5-axis machining with the M850 CNC control.

The Schmidt Peterson Motorsports Indy Car, that was sponsored by Ganesh Machinery and won the pole position in the 100th Anniversary Indianapolis 500 race, will also be on display in the Ganesh booth.

For more information contact:

Ganesh Machinery, Inc.

20869 Plummer St.

Chatsworth, CA 91311

888-542-6374 / 818-349-9166

info@ganeshmachinery.com

www.ganeshmachinery.com

IMTS 2016 Booth S-8045
