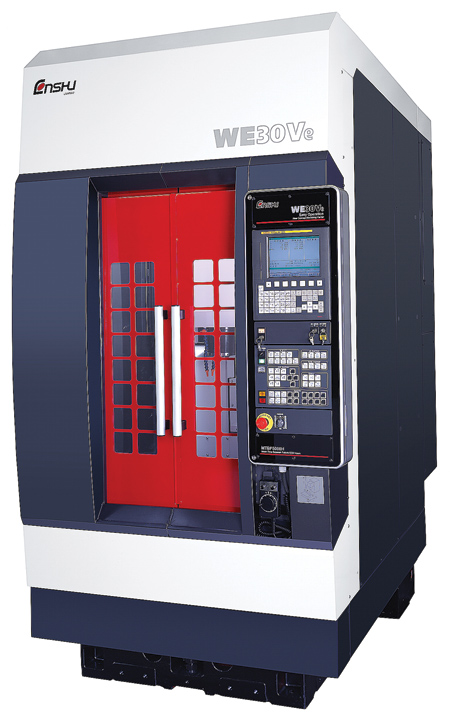

VMC for Small to Medium Parts



Enshu USA will introduce the WE30Ve vertical machining center (VMC) to the North American market at IMTS 2016. "With its evenly distributed rigid bridge structure and 12,000 RPM BT30 spindle, the WE30Ve is built for the high-speed, high-precision machining of small to medium sized parts," said a company spokesperson.

The WE30Ve features a spindle drive motor with peak output of 17.5 HP and 61 ft.-lbs. of torque for aggressive cutting. The WE30Ve also features 1,969 IPM rapid feedrates and 394 IPM cutting feedrates.

Even though it has a compact footprint of 1,400 mm x 25 20mm (55.1" x 99.2"), the WE30Ve is built to accommodate heavy fixtures up to 350 kg. The 650 mm x 400 mm (25.6" x 15.7") table work area and 700 mm x 400 mm x 300 mm (27.5" x 15.7" x 11.8") XYZ travels are designed for larger fixtures and longer workpieces. A rotary pallet changer option is available for added productivity.

The Enshu WE30Ve comes standard with a FANUC 0iMD control and 21-tool ATC.

For more information contact:

Mike Germann

National Sales Manager

Enshu USA Corporation

404 E. State Parkway

Schaumburg, IL 60173

847-839-8105

mgermann@enshuusa.com

www.enshuusa.com

IMTS 2016 Booth S-8592
