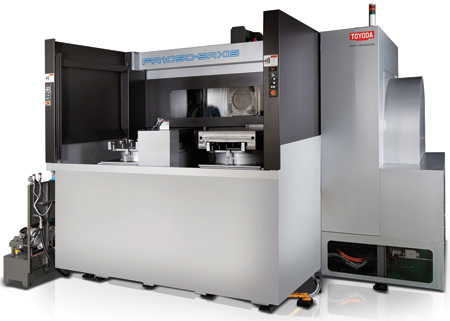

5-Axis Horizontal Machining Center



"A solid base, high removal rate and low required maintenance allows for a longer tool and machine life. Toyoda's FA1050 5-axis horizontal machining center is that along with all the capabilities wanted of boring, end milling, finish cutting, threading and U-axis machining while maintaining accuracy," said a company spokesperson.

Toyoda's FA1050 5-axis machine begins with a solid cast iron base combined with full-plate clamping mechanism with holding up to 26,000 lbs. of table clamp force. Shop owners can expect to achieve stable axial feed at high speeds during heavy workloads due to the machine's rigid core.

Spindle support from four heavy-duty bearings - double-row cylindrical roller bearings and dual angular contact thrust bearings - helps eliminate vibration. The boxway machine can perform rapid acceleration and consistency with its 60 HP spindle drive motor at 6,000 RPM of geared head tough cutting.

"The FA1050 5-axis' solid structure can secure versatile, accurate and competitive machining on difficult materials such as Hastelloy, Inconel, Nichrome and other exotic metals," said the spokesperson.

For more information contact:

Toyoda Machinery USA

316 W. University Dr.

Arlington Heights, IL 60004

847-253-0340

info@toyoda.com

www.toyoda.com

IMTS 2016 Booth S-8519
