Automation Options for Mill-Turn Centers



At IMTS 2016, EMCO, with automation partner Ultra Tech Machinery, Cuyahoga Falls, OH, will demonstrate an automated turning cell with an EMCO Hyperturn 45 mill-turn, a Renishaw Equator high speed flexible dimensional gauging system, a part handling system and a FANUC CR-35iA collaborative robot with 35 kg lift capacity. Because of the robot's sensitive contact sensing technology, it is safe to work around humans without guarding.

"The cell demonstrates the high degree of reliable automation that is available to any shop, reducing cycle times and production cost while improving production quality and consistency," said an EMCO spokesperson.

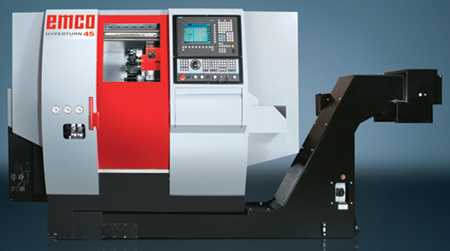

With high-performance main and counter spindles, two tool systems, a stable Y-axis, a thermo-symmetrical machine construction, compact dimensions and a range of intelligent automation solutions, the EMCO Maier Hyperturn 45 turning and milling center is geared for applications in automotive and general engineering.

A 3-axis portal in the machine permits convenient automated loading and unloading. The machine system is designed to be a complete solution providing efficiency, including measurement, and can also include deburring and cleaning stations if required.

The machining cell includes an Ultra Tech 3-drawer part handling system. Raw parts are loaded into 42-position trays on one side of the system; the drawer opens on the robot side of the system, and the robot removes raw parts, replacing finished parts in the drawer.

The basic version of the Hyperturn 45 offers a Y-axis with 70 mm traveling distance in the upper and a Z2-axis in the lower carriage system. The water-cooled main and counter spindle motors provide a drive power of 15 kW and feature a maximum speed of 7,000 RPM and torque of 100 Nm. The Siemens Sinumerik 840D-sl control and drive system, the "Solution Line", helps make programming the machine easy. A fold-out PC keyboard is added for ergonomics.

For more information contact:

EMCO Corporation

46850 Magellan Drive

Unit 160

Novi, MI 48377-2448

248-313-2700

www.emco-world.com

IMTS 2016 Booth S-8780
