Multi-Axis Workholding Solutions

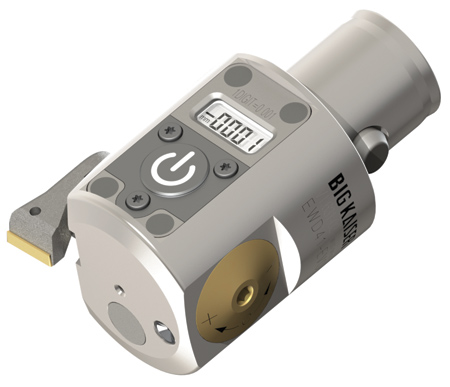

BIG KAISER has introduced the EWD EVO, a digital boring head. It will be synched with the BIG KAISER smartphone and tablet app, which was developed to enhance user friendliness while assembling and running BIG KAISER boring tools. Not only will users be able to read the cutting diameter change, but the app will also help operators determine optimal cutting parameters from their tool assemblies. The app will also log historical adjustments for all tools ever synched with it.

BIG KAISER's parent company, BIG Daishowa Seiki, is celebrating its 50th anniversary in 2016, and will be showcasing many new innovations around the globe this year. One is the expansion of the Smart Damper series of tool holders, which now includes a solution that can be applied to lathe applications. The Smart Damper boring bar features three modular insert holders, optimized for I.D. turning with common inserts.

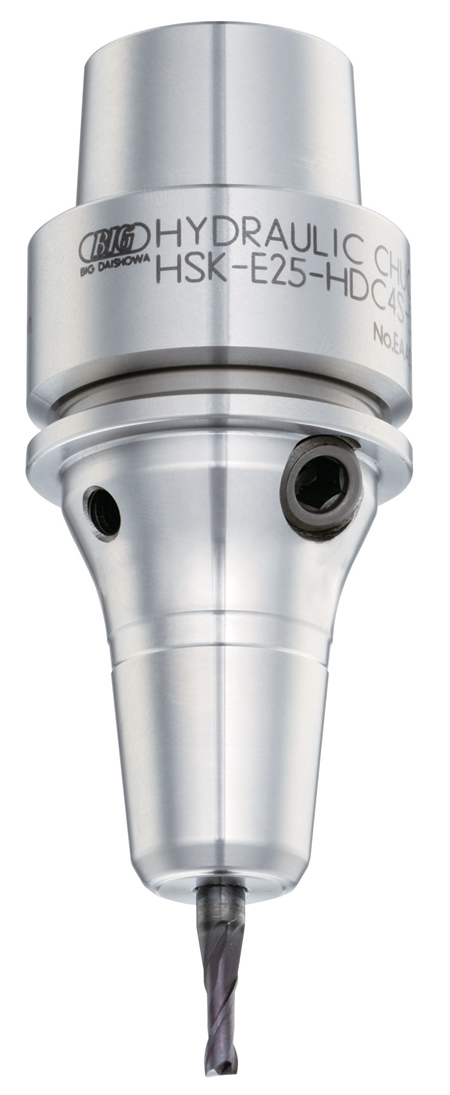

The HSK-E25 lineup of tool holders is also expanding to now include BIG Daishowa's high precision, low runout Hydraulic Chucks. Available in O3 mm, O4 mm and O6 mm clamping diameters, with 1 µm runout at the nose, these holders are a solution for precision finish milling work on high speed spindles on machines with small work envelopes.

These new Hydraulic Chucks will be shown in action at IMTS 2016 in BIG KAISER's booth on one of the two machining centers. The 5-axis Microlution 5100-S will be fully operational and equipped with a 50,000 RPM HSK-E25 spindle, loaded with precision micro milling, engraving and drilling tools from Sphinx - including the 80xD micro drill.

The Speroni Futura has undergone an enhancement with the introduction of pneumatic quick-change spindle adapters. To switch spindle adapters, the current design requires manual locking/unlocking of the spindle, which requires two hands. Now, with the touch of a button, the pneumatic quick-change system allows for fast, one-handed exchange of adapters.

The focus at IMTS for BIG KAISER's Unilock Zero-Point workholding will be the plethora of new multi-axis workholding solutions. The new modular solutions locate and stabilize workpieces without obstructing access to the sides and top of the part. They also allow a clamped workpiece to be flipped into new orientations for subsequent operations without unclamping it.

For more information contact:

BIG KAISER Precision Tooling Inc.

2600 Huntington Blvd.

Hoffman Estates, IL 60192

888-TOOL-PRO / 224-770-2999

bigkaiser@us.bigkaiser.com

www.bigkaiser.com

IMTS 2016 Booth W-1600
