Swiss Type CNC Machines Featured



Tsugami/Rem Sales has announced the details of its IMTS 2016 display, which features four machines that have never been displayed at this show.

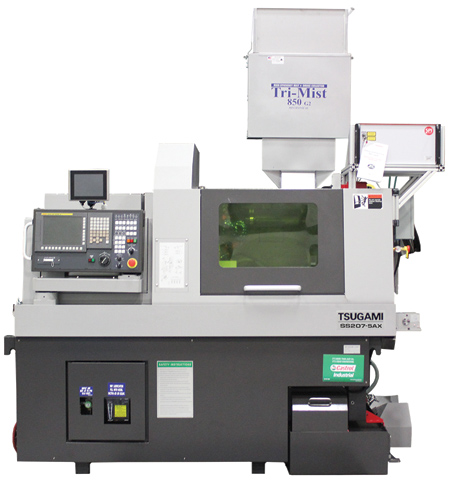

Tsguami/Rem Sales will debut the new SS207-5AX LaserSwiss, a 20 mm 7-axis Swiss type CNC lathe with B-axis control. The LaserSwiss combines Swiss style CNC machining with laser cutting on one machine. Developed by Rem Sales' sister company, Innovative Machinery Group (IMG), it allows manufacturers to perform Swiss turning and laser cutting operations with a single set-up. All operations are programmed and driven from the machine's FANUC 31i-B5 CNC.

The Tsugami BW209Z, B0205-III and P034H machines are also new to the IMTS this year.

The BW209Z is a 20 mm capacity split-slide CNC precision Swiss style lathe. It has a 10,000 RPM main spindle speed and a 12,000 RPM back spindle speed. It can house 28 tools and is equipped with a FANUC 31i-B CNC.

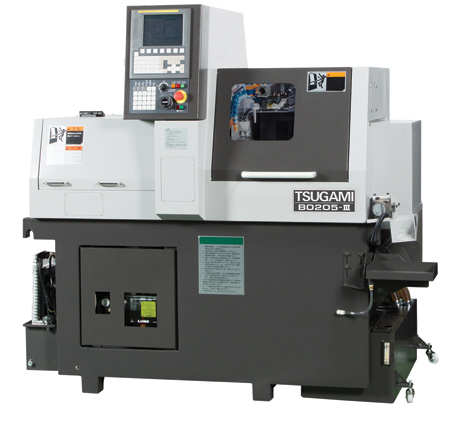

Improvements to the B0205-III 20 mm 5-axis lathe include faster cross tool speeds, longer back spindle strokes on the X2 and Z2 axes, larger ball screw diameters and expansion of its thermal displacement compensation system, which can now be used on every linear axis. The B0205-III cutting demonstration will include loading automation and integrated robotics.

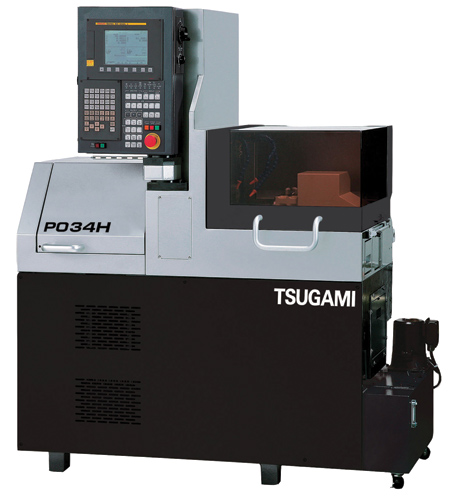

The P034H is a 3 mm 4-axis Swiss type lathe. Designed for micro machining, it is suitable for mass production of tiny, precise parts. The main and back spindles operate at 20,000 RPM and the machine has 14 total tool positions. Automatic thermal displacement compensation, an adjustable grip chuck and a specialized bar feeder are standard.

Other Tsugami machines on display include the B038T 38 mm high performance gang/turret lathe, B0326-II 32 mm 6-axis Swiss turn, SS327-5AX 32 mm 7-axis CNC lathe with servo-driven B-axis and the M08SY CNC turning center.

For more information contact:

Rem Sales, LLC

910 Day Hill Road

Windsor, CT 06095

860-687-3400

www.remsales.com

IMTS 2016 Booth S-9410
