Redesigned Oil/Coolant Mist Collector

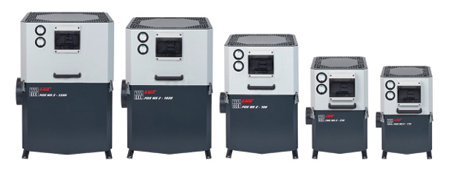

The Fox WS 2 Series oil/coolant mist collectors from LNS remove oil/coolant mist, smoke and other fine aerosols and particulates from CNC machines to provide a healthier workplace, reduce absenteeism and lower HVAC costs.

The five models with capacities from 170 - 1250 CFM, enable users to properly match all machine sizes, types and processes that use water-soluble, synthetic or neat oil coolants, with or without high-pressure delivery systems.

"All models exceed OSHA and NIOSH clean air requirements, have a patented, three-stage filtration system that guarantees optimum filter life and accept an optional 4th-stage modular HEPA filter for applications that warrant removal of 99.97% cutting oil smoke particles and other fine aerosols and particulates. The long-life filters can be easily replaced in just 15 minutes," said a company spokesperson.

Recent enhancements include a redesigned, V-shaped floor that makes it easier to drain accumulated liquids and keeps them away from the pre-filter, thus extending its life and new, dual air pressure gauges that monitor pre- and final filters so users can maintain peak airflow at all times.

Installation is now easier and more versatile with a suction inlet port that can be mounted either left or right to accommodate all machines and fit within tight spaces. There are also new mounting stands available, including a 28" tall stand on wheels and a 6' tall vertical stand.

For more information contact:

LNS America, Inc.

4621 East Tech Drive

Cincinnati, OH 45245

513-528-5674

sales@LNSamerica.com

www.LNS-america

IMTS 2016 Booth S-8586
