Digital Measuring Projector Features Expanded Capabilities

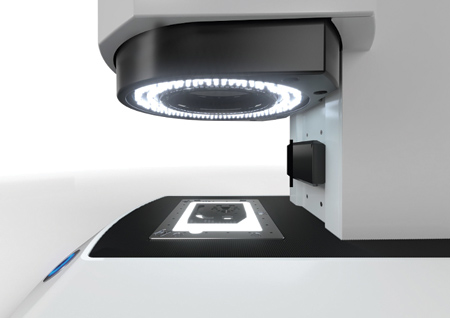

The ZEISS O-SELECT optical measuring system now offers inspection of translucent parts, in addition to punched, turned or formed parts, or injection-molded and laser-cut workpieces.

This optical measuring system is automated during the generation of measuring programs and the measurement itself. Measurements are initiated at the push of a button: the operator places the workpiece in the measuring field and launches the program. Within seconds, the camera captures the contours, analyzes all characteristics and documents them in ZEISS PiWeb quality data management software.

This measuring system is designed for a wide range of industries, from automotive to electronics to plastics. ZEISS O-SELECT is particularly suitable for checking the dimensional accuracy of distances, radii or angles.

Factors such as depth of focus and illumination play a key role in optical measurements. Operators can cause systematic measurement errors without noticing them simply by selecting the wrong settings. The consequences of an inaccurate configuration can result in deviations of several micrometers, in depth of focus, for example. The ZEISS measuring system automatically selects the right distance from the camera to the object, focuses the workpiece edges and maximizes contrast. Furthermore, the measuring machine calculates the illumination intensity, which can vary from workpiece to workpiece. Users also no longer have to waste time searching directories for the right program. ZEISS O-SELECT compares existing programs with the current workpiece and then opens the right program. The measuring system automatically detects the location of the part, so manual alignment is no longer required.

ZEISS O-SELECT has the ability to independently recognize features and offers suggestions for characteristics such as distances and radii. With a few clicks, users select the required features, which are then integrated into a measuring program. The programs are created in a self-explanatory process. ZEISS calls this new functionality "Click & Pick." Furthermore, an intuitive user interface helps operators navigate the software. It shows clearly which point they have reached and guides them through the entire run: from creating a new project to the measurement plan and specifying the measuring run, users are guided throughout the entire process up to the well-structured and informative report.

For more information contact:

Carl Zeiss Industrial Metrology, LLC

6250 Sycamore Lane N

Maple Grove, MN 55369

763-744-2400 / 800-327-9735

metrology@zeiss.com

www.zeiss.com/o-select

IMTS 2016 Booth E-5502
