Medium-Size Overhead Gantry Milling Center

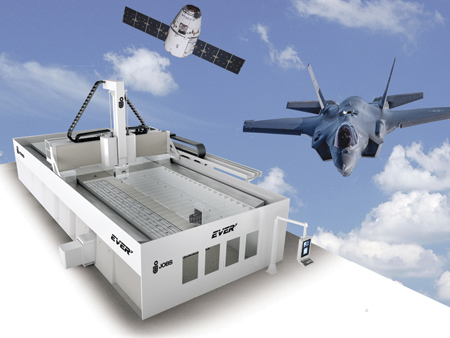

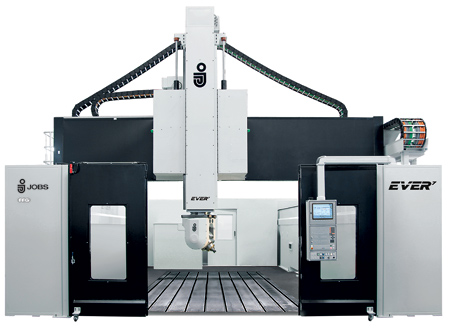

At IMTS 2016, Jobs Machine Tools will exhibit the medium-size milling center eVer 7 characterized by an overhead gantry structure sliding on fixed columns or on a concrete base.

"The eVer 7 product developments are based on simplification," said a company spokesperson. "A mark of this is the reduction of the number of components compared to an equivalent machine: -35%, without forgoing the performance of a modern high-speed milling center."

The eVer 7 design principles are: the high dynamics and chip removal capacity ensured by the crossbeam structure with multi-triangle section "MT-frame"; high acceleration and speed (up to 1,575 IPM) through innovative mechanics and kinematics; reduced hourly operating costs; possibility to customize configurations with fixed or interchangeable heads, range of accessories and possibility to integrate turning options; flexibility in use, ergonomics, loading/unloading operations; enclosure for efficient chip containment and other machining residue; simplified maintenance.

The machine to be shown is equipped with the BUSS system for the automatic milling heads change and features a 3-axis power head T3A (5,000 RPM, up to 59 HP), suitable for high-removal rate operations and a twist head T3K with a 15,000 RPM electrospindle for semi-finishing and finishing machining.

The machine's compact build helps enable guarding for efficient containment of shavings and other scraps.

The eVer 7 represents a solution for machining large-size aeronautical components and molds and dies requiring both high-power chip removal capacity and high speed finishing operation.

For more information contact:

Jobs Machine Tools, Inc.

200 South Alloy Drive

Fenton, MI 48430

810-714-0522

info@jobsmachinetools.us

www.jobs.it

IMTS 2016 Booth S-8129
