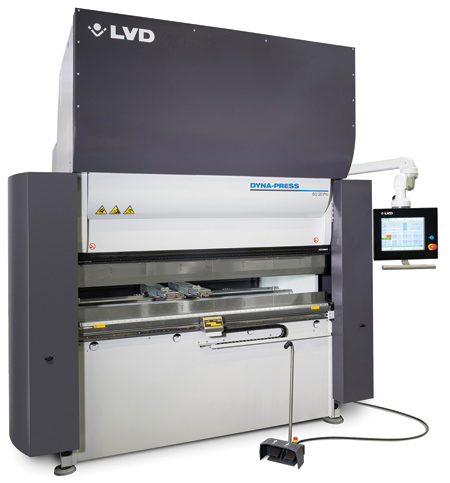

60-Ton Electric-Drive Press Brake



LVD Company nv has added Dyna-Press 60/20 to its line of Dyna-Press high-speed electric-drive press brakes.

The 60-ton machine provides 2 m of working length and a 5-axis backgauge to handle a wide range of applications at bending speeds up to 25 mm per second. A 60/20 Pro model is equipped with LVD's Easy-Form Laser system for greater control of the bending process to achieve high output at a high level of quality. The Pro model also offers an optional custom-made crowning system.

"Dyna-Press press brakes consume low electricity and deliver fast cycle times to bend more parts per minute more efficiently at a lower cost per part," said a company spokesperson. A streamlined design uses two heavy-duty ball screws to drive the force transmission from the servomotors to the pressing force of the ram. Fewer components means less maintenance.

Dyna-Press is built to help ensure accuracy across a broad range of small-to-medium-sized bending jobs. The machine can be used for air bending, coining, hemming and bottoming.

Dyna-Press 60/20 offers flexibility in tooling. It can be outfitted with universal, Wila or U.S. style punches and universal, LVD or US style dies. The Pro version offers pneumatic Wila clamping for the European market and hydraulic clamping for the U.S. market.

The 60/20 Pro is available with a crowning system custom made for each machine, designed to distribute the appropriate force and helping ensure the bend angle remains consistent over the full length of the part.

Like all Dyna-Press models, the 60/20 is easy to operate with minimal training. The 15" Touch-B touchscreen control features an intuitive graphical display. Operators can create 2D designs and simulate in 3D on the screen. The controller is compatible with LVD's CAM software, CADMAN-B.

Dyna-Press press brakes are available in 24, 40 and 60 tons. Dyna-Press 40/15 Pro and 60/20 Pro offer enhanced technology. Dyna-Press 40/15 Pro can be combined with an industrial robot to create a compact, high-speed robotized bending cell (Dyna-Cell) for automated bending operations.

For more information contact:

LVD North America

12975 Clarence Center Rd.

Akron, NY 14001

800-828-1527 / 716-542-4511

info.us@lvdgroup.com

www.lvdgroup.com
