T-A Pro and Wohlhaupter 420 (410) Boring Heads
April 1, 2023

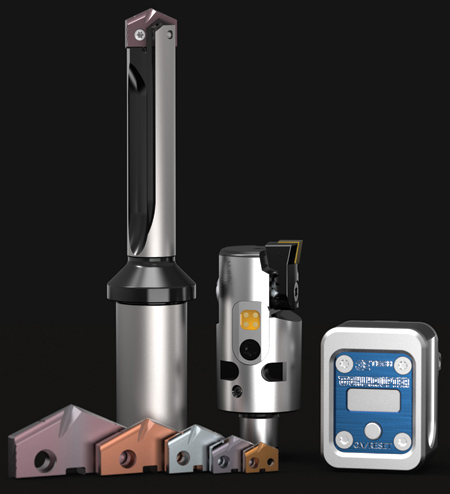

Allied Machine and Engineering is showcasing the T-A Pro and Wohlhaupter 420 (410) fine boring heads at EASTEC.
"The T-A Pro drilling system provides extended tool life, consistently creates quality holes and delivers superior chip evacuation even in the toughest applications, while the 420 (410) fine boring head is the world's smallest digital fine boring tool with a peripheral cutting edge," said the spokesperson.
The T-A Pro drill body incorporates straight flutes designed for maximum coolant flow and increased rigidity while the material-specific insert geometries produce enhanced chip formation. These insert geometries include:
- Steel (P) with AM300 coating
- Cast iron (K) with TiAIN coating
- Nonferrous (N) with TiCN coating
- Stainless steel (M) with AM460 coating
- High-speed steel substrate (X) with AM200 coating.
Adding to the material-specific inserts available for the T-A Pro, Allied most recently launched the new M geometry insert with AM460 coating, which targets stainless steel and heat-resistant super alloy (HRSA) materials. "With the release of the M geometry and its proprietary margin design, Allied is able to provide a tool that offers low cutting forces, excellent penetration rates and long tool life in challenging stainless and HRSA materials. The new insert geometry produces the best results with the newly designed T-A Pro holders but is also compatible with T-A holders," said the spokesperson.
The Wohlhaupter 420 (410) series fine boring heads are equipped with a 3ETECH docking port for easy digital diameter adjustments. "As the world's smallest digital fine boring tool with a peripheral cutting edge, the 420 (410) series has a diameter range of 0.787 in. to 1.142 in. (20 mm to 29 mm).
The 420 (410) series completed the diameter range of 3ETECH tools now with a full diameter range of 0.016" to 128.15" (0.40 mm to 3,255.00 mm). Wohlhaupter's 3ETECH digital display module can now be used with all types of precision boring tools, including fine boring with the 420 (410) series, the self-balanced 465 (464) series, versatile boring with VarioBore, large diameter boring with the 538 (537) finish boring cassettes and custom boring tool solutions. The digital display module is docked to the tool, allowing maximum coolant pressure to be used and eliminating the risk of damaging the digital components during operation. Users only need a single display module for all tools with integrated 3ETECH technology, which reduces tooling costs.
For more information contact:
Allied Machine & Engineering Corp.
120 Deeds Drive
Dover, OH 44622
330-343-4283
info@alliedmachine.com
www.alliedmachine.com
EASTEC booth 5453
