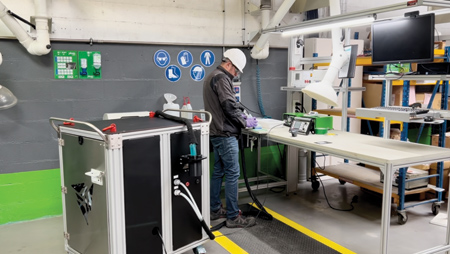

SIFCO ASC has launched a portable all-in-one plating system featuring dripless technology called the Advanced Solution Control System (ASCS).
Due to the system's technique of nondrip selective plating, all chemical solutions flow and vacuum through the SMART tools before being recycled back into the cart's solution management system-right at the surface of the workpiece. The result is a cleaner, more environmentally friendly and inherently safer working environment, the company reported.
"This innovative piece of electroplating technology is also entirely portable, enabling it to be brought directly to the specific part or component. In addition to aiding throughput and productivity, the reduced ergonomic risk will offer significant safety benefits to operators and employees," said a company spokesperson.
Nicolas Baudin, SIFCO ASC's General Manager, said, "By using the ASCS, technicians will quickly see a boost in safety and reduction in their process footprint-a key consideration for everyone in the industry. The system's dripless tooling will also significantly cut exposure to fumes and chemicals as well as reduce waste thanks to the use of less masking, cover materials and cleaning supplies."
"In addition to the environmental and safety benefits, the ASCS has been designed to further enhance automation," said the spokesperson. "After all, selective plating is no longer strictly a manual process. By increasing automation, cycle times can be optimized, data is logged in real time, repeatability from one technician to the next is increased and human errors are minimized."
Two sizes of the ASCS, the Nano and Prime, are currently available. Each has been designed to further build on the existing benefits of selective plating, such as in-situ repairs and reduced masking and downtime.
Designed for basic operations of two process steps or less, the manual Nano utilizes the TechnoPlate with its removable controller, allowing technicians to continuously monitor the amps and volts without ever having to turn around. Recommended applications include anodizing, zinc-nickel, cadmium and passivation.
An expansion of the Nano, the Prime is suited to more complex applications and can hold up to nine different plating solutions. This fully automated system is equipped with an HMI controlled rectifier, allowing technicians to program each process step, continually monitor the operation and log data in real time. The cart also has a unique Cleaning-in-Place feature, which prevents the potentially harmful mixing of chemicals. Despite all this functionality, the Prime still only takes up the footprint of a standard pallet.
SIFCO ASC has also developed a collection of SMART tools to cover a variety of geometries and contact areas, ranging from 1 sq. in. to 15.5 sq. in. With the SMART tools, the deposit can be plated in any orientation-horizontally, vertically and upside down-with no difference in performance or result.
For more information contact:
SIFCO Applied Surface Concepts
5708 E Schaaf Road
Independence, OH 44131
800-765-4131
info@sifcoasc.com
www.sifcoasc.com
