Fast, Flexible Field of View Measurement



Vision Engineering offers its TVM Field of View (FOV) video measurement systems. TVM offers larger system performance and ease of use within a small footprint. Time-saving instant FOV measurements and a moving stage allow larger components to be measured quickly and easily.

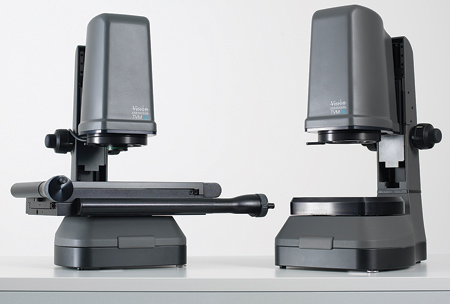

The TVM series includes TVM20 and TVM35, with FOV sizes of 20 mm and 35 mm respectively. Both systems are designed to meet rigorous quality assurance applications in electronics, automotive, aerospace, medical and plastics manufacturing: offering rapid and accurate non-contact measurement. Components can be instantly measured within the FOV with a click of the mouse.

"Cylindrical, flat or square components can be instantly measured on the shop floor, offering instant go/no-go evaluation. TVM's small footprint also saves space in the workshop or QC laboratory. Its ease of use saves on training time and eliminates operator error, making TVM a versatile tool for a range of quality assurance applications," said a company spokesperson.

As with other measurement and inspection systems from Vision Engineering, the TVM systems can be configured to suit specific applications. The fixed stage FOV system enables instant, accurate measurements of small pressed metal components, turned parts, injection molded plastics, tubes and cables, while the addition of a manually-controlled stage extends measurement for larger components up to 200 mm x 100 mm.

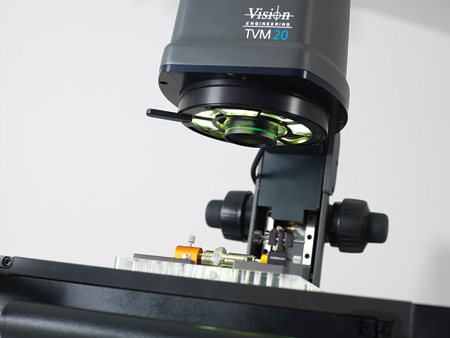

The combination of TVM's flat field telecentric lens and collimated sub-stage lighting, featuring a new quadrant LED ring light, creates a sharp image of components on the HD monitor and improves video edge detection of complex parts such as threads and valves. TVM works in combination with new software features for instant measurement of wire insulation and screw threads.

"TVM's comprehensive, user-friendly software supports a broad range of applications delivering the precision and clarity that would be expected from expensive high end video measurement systems," said the spokesperson. Features include simple data import/export, image stitching and reporting facilities.
