HYBRID Multitasking Series Expands

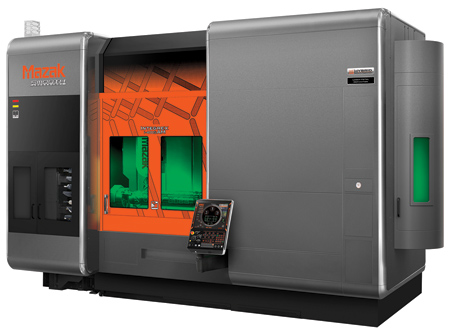

Mazak Corporation offers its INTEGREX i-400S AM, part of the expanded HYBRID multitasking family of machines. Featuring an additive head with laser metal deposition technology, the versatile machine also includes a second turning spindle (S) to offer even higher levels of precision and throughput when building, coating and/or cutting medium- and large-sized parts.

Selective laser metal deposition uses a single multiple-range, high-power laser to melt metal powder from one of three nozzle heads. With a range of options well suited for everything from fine coating applications to high-volume deposition for building near-net-shape part features, the deposition type can be changed with the overhead gantry system. Due to this innovation, the INTEGREX i-400S AM is suitable for joining up to three different materials within one workpiece.

For finer coatings and precise features, multi-laser metal deposition heads are also available for the INTEGREX i-400S AM. A new technology in which multiple laser beams in the AM head are used to melt powered metal, it is particularly effective for heat-sensitive thin sheet metal material and complex surfaces. By applying the heat of multiple lasers, manufacturers can also quickly coat stainless steel with materials like Stellite No. 6 for applications involving impellers or other heat- and wear-sensitive parts.

For subtractive operations, the INTEGREX i-400S AM has a main integral spindle/motor headstock with a 40 HP, 3,300 RPM spindle that accommodates a range of applications, from heavy-duty cutting at low speeds to processing aluminum and other nonferrous materials at high speeds. The rigidly clamped C-axis indexes in 0.0001° increments and is designed to deliver high accuracy. The second 35 HP, 4,000 RPM spindle also features an integral spindle/motor to help ensure high-efficiency machining for secondary operations.

The INTEGREX i-400S AM employs a 30 HP, 12,000 RPM milling spindle mounted in the rotating B-axis with a range of 240° in 0.0001° indexing increments. For a high accuracy of motion, B-axis scale feedback comes standard on the machine. The machine's automatic tool changer can store up to 110 tools.

"As part of the SMOOTH TECHNOLOGY platform, the machine features the latest MAZATROL SmoothX CNC, which makes it easy to generate programs for highly complex parts production, including the incorporation of both additive and subtractive processes in one set-up. It also has several advanced functions that allow it to ensure the shortest possible machining cycle times, especially in fine increment programs for simultaneous 5-axis operations and free-form die-mold machining," said a company spokesperson.

For more information contact:

Mazak Corporation

P.O. Box 970

Florence, KY 41022-0970

859-342-1700

www.mazakusa.com
