Measurement Solutions for Gears, Shafts, Worms

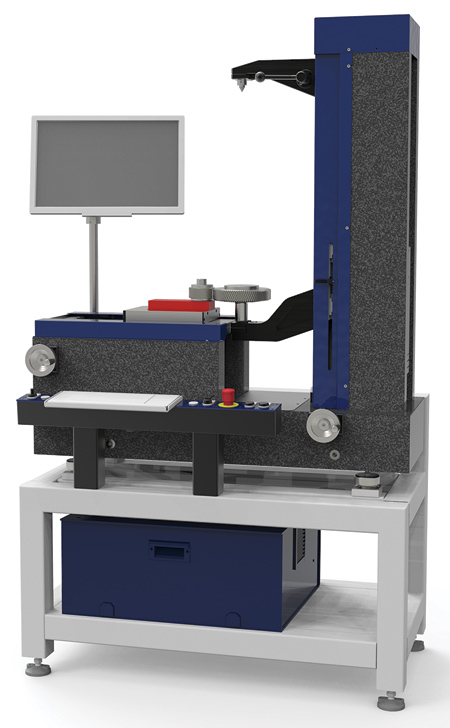

FRENCO, a developer of gear and spline measurement solutions, offers the ZWP 30, a double flank inspection machine for large gears, shafts and worms. Euro-Tech is the North American distributor of Frenco splines and gears.

Features and benefits:

  • Workpieces: Gears with borehole, shafts between tips
  • Characteristics: Composite deviations of double flank gear rolling inspection, center distance
  • Measuring time: 10 to 20 seconds
  • Accuracy: Minimum tolerance of workpiece Tmin ≥ 10 µm, determined by method 2 made with master pieces.
  • Solution: large machine with steady center attachment; compact frame including electronics and PC; linear scale within the whole measurement range
  • Software: User-friendly software FGIpro; graphical display of values; extensive options, data export, various languages
  • Precise granite base
  • Ergonomic arrangement of controls
  • Eight adjustable, 30 mm opening path
  • Options: Fixture for worms.

Technical data:

  • Center distance: 70 mm - 330 mm
  • Maximum diameter of workpiece: 500 mm
  • Center height size with steady center attachment: 160 mm - 750 mm
  • Adjustment of measuring force: 4 N - 40 N, adjustable by cylinder
  • Length x width x height: 1,185 mm x 620 mm x 2,010 mm
  • Weight: 770 kg.
