Heavy-Duty Dual Resolution Encoders for Safety Applications
April 1, 2014
Leine & Linde has added two encoder models with dual outputs to its product line for use in safety applications.

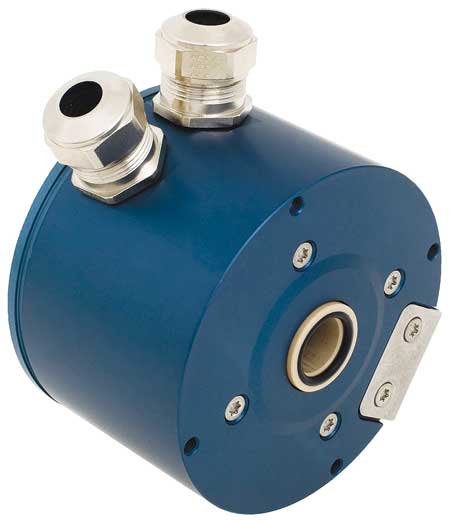

"These 855 and 865 model encoders incorporate heavy-duty bearings, robust enclosures and electronic designs that are well-suited to withstand an environment where powerful vibrations and electronic disturbances such as overvoltage and short circuits are the norm," said a company spokesperson. "To meet the needs of equipment safety issues, the Leine & Linde 855 and 865 models incorporate two encoders utilizing separate scanning LEDs and electronic circuits into one housing. The outputs are galvanically isolated from each other and may be connected to two separate systems depending upon the needs of the application. For example, one output could be used for motion control while the other is monitored to facilitate automatic machine shutoff in dangerous incidences."
Both encoders can be supplied with dual radial M23 12-pin connectors, while the 865 can also support either customer-installed or pre-installed cables. Most encoder variants on these models have the same pulse rate on both outputs, and a large number of output resolutions are available. Special limited variants are also possible where the two outputs have separate resolution, e.g. 1024-2048 ppr.
High voltage TTL, high voltage/high current TTL, RS-422 and standard 5 Vdc TTL output options can be mixed and matched for either output. Short-circuit protection is available for the high voltage options.
The 855 comes with an 11 mm keyed shaft and B10 Euroflange mounting. The 865 can have either a 12 mm or 16 mm blind hollow shaft with optional tether or torque bracket mountings. As an option, a 17 mm taper shaft or ceramic bearings for enhanced lifetime and electrical isolation are also available.
