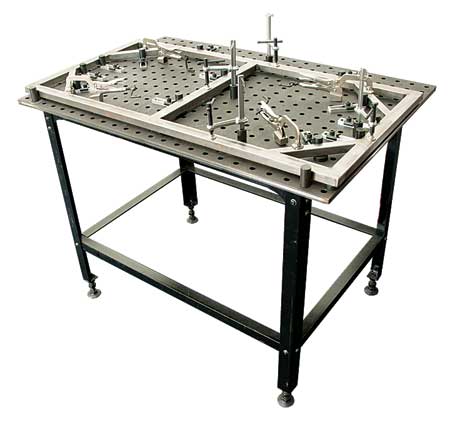

Modular Welding Table + Tool Kits



Strong Hand Tools, manufacturer of Strong Hand Tools welding clamps, magnets, pliers and BuildPro welding tables, offers the FrameBuilder Kits, a line of six for the fixturing (set-up) of frames before tack welding.

The FrameBuilder Tabletop is 32" x 48" with 5/8" holes in a 2" grid pattern. The FrameBuilder Clamps and Modular Fixturing Components can be inserted into the 5/8" holes at any point on the tabletop for complete flexibility in the set-up of fixtures for dedicated, short run or one-time use fixtures.

Choose from six kits designed to suit specific types of stock for frame building: square tubes, round tubes, I-beam, 3D carts, sheet metal and The Super Kit with a large variety of clamps and components. The FrameBuilder Kits contain all the clamps and components needed to locate, stop, position, clamp and elevate stock for welding clearance.

The FrameBuilder Table provides two height options to best accommodate available work space. Used with the tabletop frame only, and set on top of an existing work surface, the maximum height is 7" - 8". Or, use the (included) leg frame, and set up the FrameBuilder Table as a stand alone work surface at heights of 34" - 36". A set of four leveling feet are included.

For more information contact:

Pamela Farley, Marketing Manager

Strong Hand Tools

7141 Paramount Blvd.

Pico Rivera, CA 90660

800-989-5244 Ext. 213

pam@stronghandtools.com

www.stronghandtools.com
