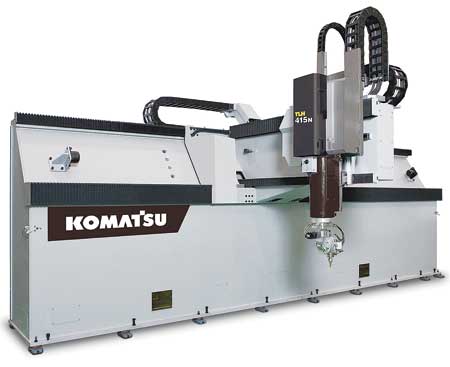

The TLH Series with IPG Fiber Laser 5-axis, 3-dimensional laser cutting systems is an ultra high speed and versatile performer ideal for hot stamping and a variety of process applications.
Komatsu has announced advances made to its NTC TLH 5-axis fiber laser processing systems. The cantilever-style TLH models now offer a new control system and teach pendant to allow for easier operations and use. The controller, labeled 06R, is an upgrade from the previous proprietary 05R NTC controller. The new controller provides easier to read screens with touch screen activation leading to faster processing times.
The new teach pendant response time has improved from two seconds to a half second, is ergonomically advanced for operator use and provides a safety interface to ensure that two hands are on the pendant with automatic shut off should one hand be removed. The TLH also comes with a new color scheme for a contemporary look and new Komatsu badging.
The TLH Series features two models: the TLH-414N with a shuttle pallet system and the TLH-408N with a 110" dia. rotary table. Cutting speed to 1,575 in/min (40,000 mm/min) can be achieved and the series features an IPG fiber optic generated and beam delivery system with 3 kW power option.
"The fiber laser series has been shown to achieve processing times two to three times faster than traditional CO2 and provide significant savings in operating costs. It is ideal for hot stamping applications and high speed cutting of thin gage mild steel, aluminum or stainless steel up to 1/4 in. (6 mm)," said a company spokesperson.
Depending on the model, the TLH 5-axis series provides X-, Y- and Z-axis travel up to 177 in. (4,500 mm), 45 in. (1,150 mm) and 20 in. (500 mm) respectively with positioning accuracy of within +/- 0.05/500 mm (+/- 0.002"). Combined with its controllable optical head angles of +720° on the C-axis and rotation of +135° on the A-axis, the TLH models can operate in all cutting applications.
The series provides two pallet options, a 4' x 8' shuttle for larger parts processing or a 110" dia. rotary table for increased flexibility and production for smaller parts and volumes. The system uses a Windows operating environment, non-contact gap sensor technology, controllable optical head angles and operator friendly joystick and hand-held pendant.
In addition to the TLH Series, Komatsu's lineup of NTC laser processing machines includes the TLM Series 3-dimensional, 5 axis; the TLZ Series 2-dimensional, 3-axis systems with flying optics; the TLV Series 3-axis hybrid machines for large, wide workpieces; and the TLX Series high power, 3-axis models in cantilever and gantry configurations.
For more information contact:
Komatsu NTC America
46605 Magellan Dr.
Novi, MI 48377
800-NTCLASR / 248-560-1200
www.ntclaser.com
