MIG Gun Nozzles Minimize Changeovers

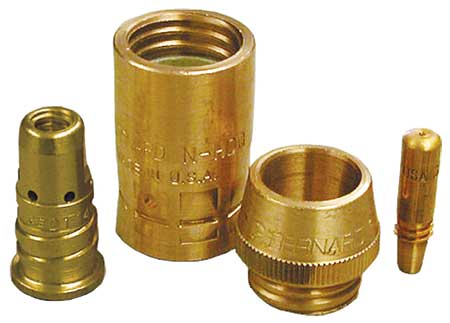

To minimize the frequency and cost of changeovers associated with heat degradation, Bernard offers its Quik Tip HD Series nozzles featuring a removable nozzle cone.

To minimize the frequency and cost of changeovers associated with heat degradation and routine wear, Bernard offers its Quik Tip HD Series nozzles featuring a removable nozzle cone. According to the company, these nozzles offer an increased wall thickness and insulating material to help them withstand the heat of the welding arc for longer periods of time.

"The removable nozzle cone lowers downtime and costs by allowing the welding operator to replace only this portion of the consumable - the most frequently damaged - without having to remove or replace the entire nozzle or the contact tip," said a company spokesperson. "It also simplifies and expedites spatter cleanup by providing greater access to the nozzle body for spatter removal."

The Quik Tip HD Series nozzles are compatible with standard Bernard Quik Tip Series contact tips, gas diffusers and insulating caps. Quik Tip contact tips feature a threaded taper lock designed to increase tip life by providing enhanced heat transfer and electrical conductivity. They feature quick changeover - welding operators simply twist the contact tip to remove and install.

The Quik Tip HD Series nozzles are designed for shipbuilding, trailer fabrication and other heavy equipment manufacturing operations.

For more information contact:

Bernard Welding Equipment

449 West Corning Road, Box 667

Beecher, IL 60401

855-MIGWELD

info@bernardwelds.com

www.bernardwelds.com
