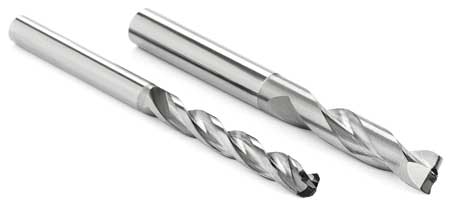

Seco's CX1 and CX2 polycrystalline diamond (PCD) drills for composite holemaking feature diamond tip technology designed to eliminate issues with uncut fibers or delamination in composite machining.
"The CX1 and CX2 PCD drills use solid PCD tips," said a company spokesperson. "These tips can be much sharper than PCD coated drills as the coating, when applied, wraps around the cutting edge and creates a dulling effect. Additional benefits of the solid PCD tipped drills include high cutting speeds, long tool life, low friction, enhanced thermal conductivity, multiple resharpening capacity and high process reliability."
"In composite machining, acute edge sharpness is everything as the very thin fibers that comprise composite material are extremely difficult to cut," said Scott Turner, Marketing Manager - Holemaking at Seco. "If left uncut, these fibers eventually lead to material fray and premature part replacement. Furthermore, a sharper cutting tool requires less stress on the material and with less stress comes a lower chance of toughness compromising delamination."
For effectively drilling through "plain" composite materials, Seco reported that the third flute on the CX1 provides high levels of stability in the hole as well as decreases vibrations and improves roundness. Also, the dome-shaped tip of the CX1 applies a double angle geometry that reduces uncut fibers and delamination in composite-only applications. "Grinding these highly complex types of geometries was previously impossible using conventional brazed or similar PCD techniques," said the spokesperson.
Seco developed the CX2's flat geometry drill point for the machining of stacked composite materials that incorporate layers of aluminum, titanium or stainless steel. "With a PCD cap and drill point angle of 180°, the CX2 provides efficient chip breaking and evacuation," said the spokesperson. "This reduces the chance of metal chips damaging the hole when transitioning between layers of metal and composites and, as a result, keeps the surface finish of the composite intact."
"While solid PCD tipped drills are more expensive than PCD coated drills, the investing makes sense when hole quality is of the utmost importance, as with aircraft components," said Turner. "Also, the overall return on investment for these solid tip designs can be substantial in certain applications, such as the drilling of a large number of holes. In fact, the PCD drills with the CX1 and CX2 geometries have the ability to effectively drill two to three times more holes than a PCD coated drill."
Both the CX1 and CX2 series include a mix of dimensions for holes that range in size from 0.125" to 0.375". Chamfers can also be incorporated into the drill designs to further increase application flexibility.
For more information contact:
Seco Tools Inc.
2805 Bellingham Drive
Troy, MI 48083
248-528-5444
secotools.us@secotools.com
www.secotools.com/us
